TE CONNECTIVITY 2201864-1 模块连接器, 迷你输入/输出, 插座, 8 触点, 8 路, 1 端口

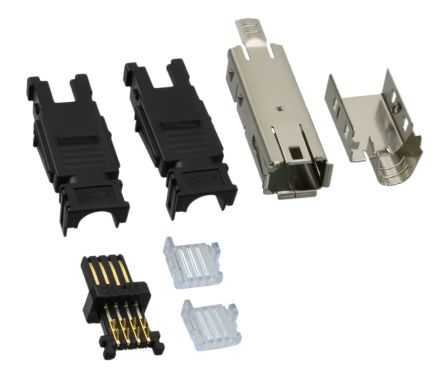

微型输入/输出插座套件
此系列 TE Connectivity 工业微型输入/输出设计用于满足现代日常应用的严苛要求。这些微型输入/输出连接器插座套件尺寸为标准 RJ45 连接器的四分之一。它们提供双点触点系统,可提供更大的稳定性和闭锁功能,该功能可防止不准确匹配和振动拉出。典型应用包括机器人、PLC 和运动控制。
### TE Connectivity 工业微型输入/输出
得捷:
CONN MULTI-PURP RCPT 8P SLD STR
欧时:
MINI I/O RECEPTACLE KIT TYPE I L
立创商城:
2201864-1
贸泽:
I/O Connectors INDUSTRIAL MINI I/O PIERCING REC CON KIT
艾睿:
Thanks to TE Connectivity&s;s 2201864-1 USB connector, you can be assured that a connection will remain reliable and secure for a long time. It has a straight body orientation. This is a 2-row connector. It has a plug type gender. It has a maximum voltage rating of 30 V. Its pitch is 0.63 mm. This socket type connector&s;s 8 contacts that are made out of copper alloy and plated with gold. 2201864-1 is housed in thermoplastic. This device has a maximum current rating of 0.5 A/contact. The component will be shipped in tray format. This product is 13.5 mm long, 8.7 mm tall and 35 mm deep. It uses the solder termination method. This harting connector has an operating temperature of -40 to 85 °C.
Allied Electronics:
Type I Series; Cable Mount Mini I/O Connector Receptacle; 8 Way; Shielded
安富利:
Conn Rectangular SKT 8 POS Solder ST Cable Mount Tray
Verical:
MINI I/O REC KIT TYPE I L
Newark:
Modular Connector, Mini I/O, Jack, 8 Contacts, 8 Positions, 1 Ports
MASTER:
MINI I/O REC KIT TYPE I L
Online Components:
INDUSTRIAL MINI I/O PIERCING REC CONNECTOR KIT
Electro Sonic:
MINI I/O REC KIT TYPE I L
触点数 8
极性 Male
触点电镀 Gold
额定电流 500 mA
绝缘电阻 500 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 8
额定电流Max 0.5A/触头
额定电压Max 30 V
额定电压 30 VAC
安装方式 Solder
引脚数 8
封装 -
宽度 35 mm
高度 8.7 mm
封装 -
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8538908180
