5.5 DIGIT DMM USB ONLY 120V VERSION

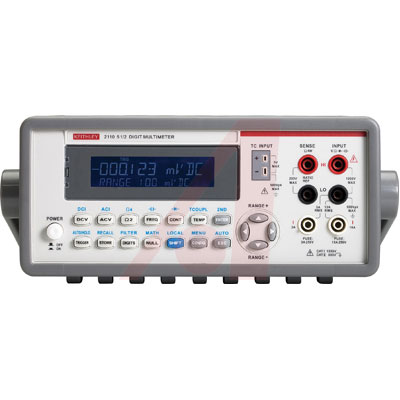

The Model 2110 51⁄2-Digit Dual-Display Digital Multimeter combines a compelling price with a comprehensive set of capabilities, superior measurement accuracy, and high speed for a broad range of applications. It features 15 measurement functions and 7 math functions and has dual-line display capability, which allows it to display two different measurements concurrently. The Model 2110 is an unbeatable value for production, R&D, and test engineers, scientists, and students making a wide variety of measurements in portable, bench, and system applications.
**Features:**
* Speed: up to 50,000 readings per second
* Control: GPIB optional and USB interfaces, accepting SCPI IEEE-488.2 commands
* External BNC trigger lines
* NIST traceability with included calibration certificate
* Accuracy: 0.012% basic DCV accuracy
* Easy-to-operate panel
* Easy waveform plotting and data collection with KI-Tool and KI-Link
* Store up to 2000 readings
额定电流 10 A
DMM Functions AC/DC Current, AC/DC Voltage, Capacitance, Continuity, Frequency, Resistance, Temperature
Current Measure AC Max 10A
Current Measure DC Max 10A
Voltage Measure AC Max 750V
Voltage Measure DC Max 1kV
Resistance Measure Max 0.1Gohm
DMM Connectivity USB
No. of Digits 5.5
Warranty 3 Years
Product Range \-
Plug Type \-
Current Measuring Range AC 1A to 10A
DMM Type Bench
Voltage Measuring Range DC 100mV to 1000V
Ranging Auto, Manual
Voltage Measuring Range AC 100mV to 750V
Temperature Measuring Range 0°C to +40°C
DMM Response Type True RMS
SVHC To Be Advised
Current Measuring Range DC 100µA to 10A
RoHS标准 RoHS Compliant
