2000890-1

高速/模块连接器 Fortis, 10 column R/A, left mod assy

Fortis Zd 3Pr 10Col R/A Left Module Assy

得捷:
CONN HEADER 90POS EDGE MNT

立创商城:
2000890-1

贸泽:
高速/模块连接器 Fortis, 10 column R/A, left mod assy

艾睿:

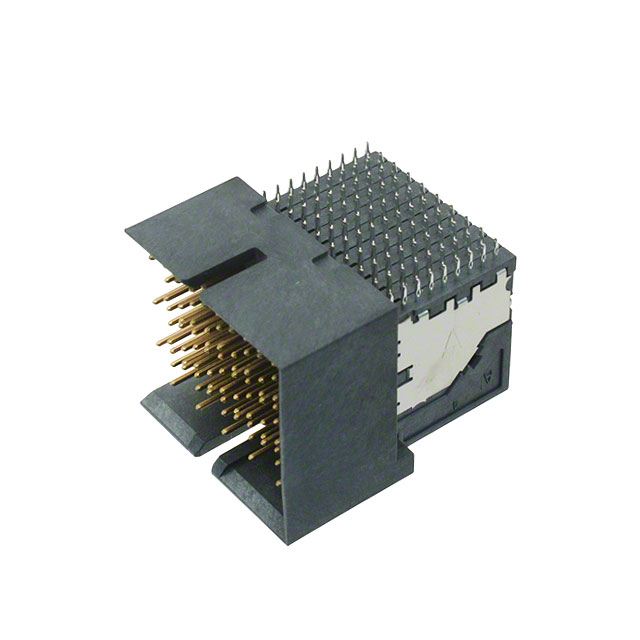

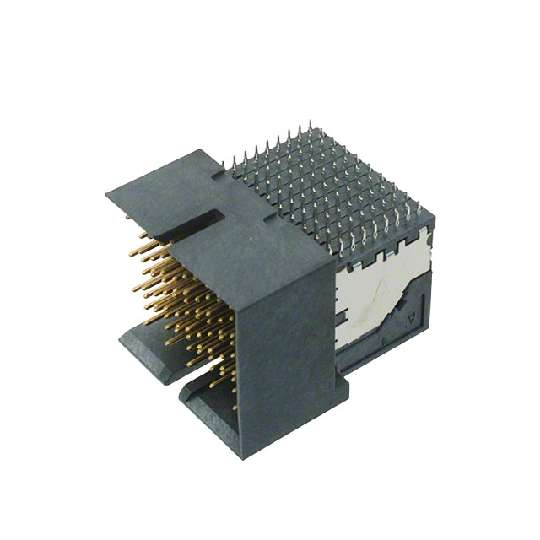

Solder this hard metric 2000890-1 backplane connector from TE Connectivity directly onto a PCB to more easily link multiple connectors together. This PIN connector&s;s 90 contacts that are made out of copper alloy and plated with gold over nickel. This is a 9-row connector. It has a right angle body orientation. Its pitch is 1.4 mm. This product is 21.45 mm long, 19.8 mm tall and 25.54 mm deep. It uses the solder termination method. 2000890-1 is housed in black liquid crystal polymer. This backplane connector has an operating temperature of -65 to 125 °C.

安富利:
Conn Hard Metric PIN 90 POS 1.4mm Solder RA Thru-Hole

Chip1Stop:
Conn Hard Metric PIN 90 POS 1.4mm Solder RA Thru-Hole

Verical:
Conn Hard Metric PIN 90 POS 1.4mm Solder RA Thru-Hole Package

Newark:
# TE CONNECTIVITY  2000890-1  Connector, Fortis Zd Series, Backplane, 90 Contacts, Header, 1.9 mm, Press Fit

MASTER:
Fortis Zd, 3-PAIR, 10-COLUMN, RIGHT ANGLE LEFT

Online Components:
Fortis Zd 3Pr 10Col R/A Left Module Assy

Electro Sonic:
Fortis Zd 3Pr 10Col R/A Left Module Assy
