202103概述

AMPHENOL RF  202103.  射频/同轴连接器, BNC

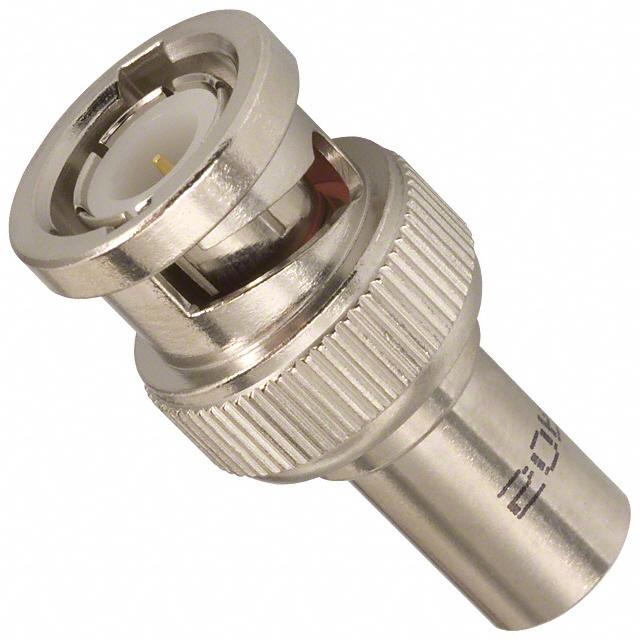

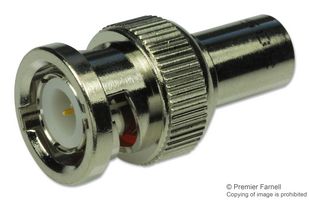

The is a BNC Terminator Plug is made of brass with nickel-plated finish and a Delrin insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50R BNC connector is miniature and lightweight units. Designed to accommodate a large variety of RG and industry standard cables.

.
500V Peak voltage rating
.
5000MR Minimum insulation resistance
.
-40 to +85°C Temperature range
202103中文资料参数规格
技术参数

极性 Male

触点电镀 Gold

工作温度Max 85 ℃

工作温度Min -40 ℃

物理参数

触点材质 Brass

其他

产品生命周期 Active

包装方式 Bag

制造应用 车用, 医用, Communications & Networking, 射频通信, Sensing & Instrumentation, Computers & Computer Peripherals, 通信与网络, 传感与仪器, Automotive, Medical, RF Communications, 计算机和计算机周边

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买202103
型号: 202103
描述:AMPHENOL RF  202103.  射频/同轴连接器, BNC
替代型号202103
型号/品牌 代替类型 替代型号对比

202103

Amphenol 安费诺

当前型号

当前型号

SPC15277

Multicomp

类似代替

202103和SPC15277的区别

4700-51

安费诺

功能相似

202103和4700-51的区别
