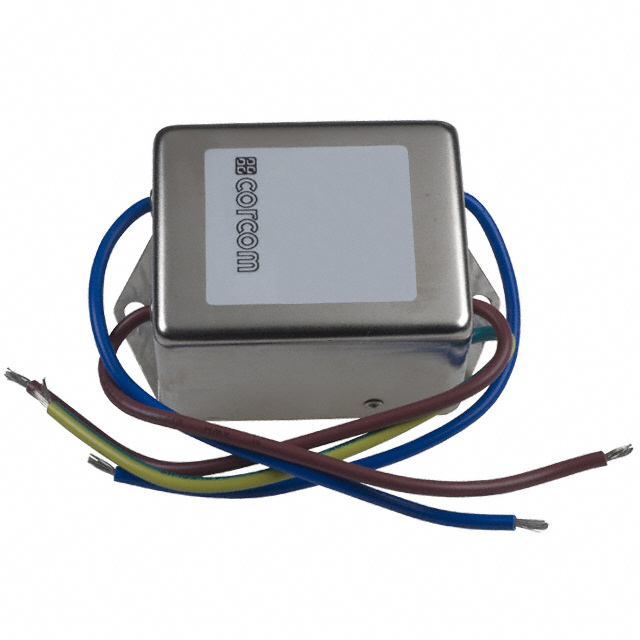

CORCOM - TE CONNECTIVITY 2VR3 Power Line Filter, Chassis, 0.303μF, 250VAC, 2A, EMI, RFI, Wire Leaded, 1.078mH
Single Phase EMC/EMI 线路 250VAC 50/60Hz 两级 导线引线
艾睿:
Power Line Filter General Purpose RFI 50Hz/60Hz 2A 250VAC Wire Lead Flange Mount
安富利:
Power Line Filter 50Hz/60Hz 2A 250VAC Wire Lead Flange Mount
Chip1Stop:
Power Line Filter General Purpose RFI 50Hz/60Hz 2A 250VAC Wire Lead Flange Mount
Verical:
Power Line Filter General Purpose RFI 50Hz/60Hz 2A 250VAC Wire Lead Flange Mount
MASTER:
Power Line Filter General Purpose RFI 50Hz/60Hz 2A 250VAC Wire Lead Flange Mount
Powell:
Power Line Filters 2A WIRE-WIRE LEAD FLANGE MOUNT
Electro Sonic:
Power Line Filter General Purpose RFI 50Hz/60Hz 2A 250VAC Wire Lead Flange Mount
频率 60.0 Hz
额定电压DC 250 V
额定电压AC 250 V
额定电流 2 A
电容 0.303 µF
电感 1.078 mH
额定电流Max 2 A
工作温度Max 40 ℃
工作温度Min -10 ℃
额定电压Max 250 VAC
额定电压 250 VAC
安装方式 Flange
长度 52.6 mm
宽度 46 mm
高度 29.5 mm
工作温度 -10℃ ~ 40℃
产品生命周期 Active
包装方式 Bulk
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8548900100
