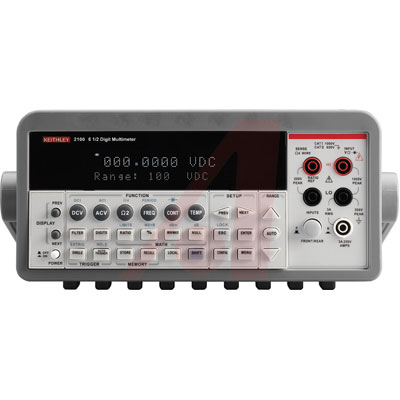

6½-digit USB Digital Multimeter 120V. The Model 2100 USB Digital Multimeter is the newest member of Keithley’s family of high performance DMMs. Its high accuracy 38ppm, 6½-digit resolution is ideal for critical measurements. The Model 2100 features 11 measurement functions and 8 math functions to easily accommodate the most commonly measured parameters.
The Model 2100 USB Digital Multimeter is the newest member of "s family of high performance DMMs. Its high accuracy 38 ppm, 61⁄2-digit resolution is ideal for critical measurements. The Model 2100 features 11 measurement functions and 8 math functions to easily accommodate the most commonly measured parameters. All accessories, such as USB cable, probes, and software, are included with the Model 2100. With its unique combination of high precision and low total cost of ownership, the Model 2100 is an unbeatable value for R&D engineers, test engineers, scientists, and students making basic precision measurements on the bench and in system applications. They can be used as stand-alone bench top instruments and as components in test systems.
额定电流 3 A
DMM Functions AC/DC Current, AC/DC Voltage, Continuity, Frequency, Resistance, Temperature
Current Measure AC Max 3A
Current Measure DC Max 3A
Voltage Measure AC Max 750V
Voltage Measure DC Max 1kV
Resistance Measure Max 0.1Gohm
DMM Connectivity USB
No. of Digits 6.5
Warranty 1 Year
Product Range \-
Plug Type \-
Display Count 50
Current Measuring Range AC 1A, 3A
DMM Type Bench
Voltage Measuring Range DC 100mV to 1000V
Ranging Auto, Manual
Voltage Measuring Range AC 100mV / 1V / 10V / 100V / 750V
Temperature Measuring Range -200°C to +630°C
DMM Response Type True RMS
SVHC To Be Advised
Current Measuring Range DC 10mA,100mA, 1A, 3A
RoHS标准 Non-Compliant
