MOD, TXRX, MM, SFP, ENET, 1.25Gbps; Data Rate Max: 1.25Gbps; Module Interface: Ethernet; SVHC: No SVHC 19-Dec-2012

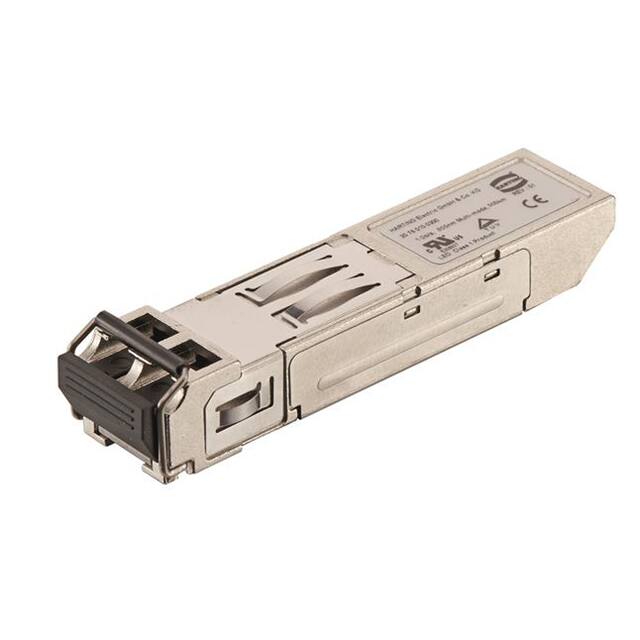

is a SFP 1000 Transceiver GILC with data rate of 1000Mbit/s used in HARTING"s mCon 1000 Ethernet switches designed for data transmission via Fibre optic cables with SFP transceivers. SFPs small form-factor pluggable are small standardised modules used for network connections. These modules are a specification for a new generation of modular optical transceivers. These devices are constructed as connecting plugs for extremely quick network connections which can be quickly and conveniently managed using mCon manager V3. This software allows you to configure all switches in a large complex network, or to configure only individual switches Up to ten Ethernet stations and various pluggable modules SFPs can be connected to the switch via shielded twisted-pair cable in order to individually customise the interface to the application. SFPs are closely related to GBICs and for this reason they are named as mini-GBICs.
- .
- Wave length of 850nm
- .
- Fibre optic of 50/125µm or 62.5/125µm
- .
- Connectors that can be used are LC connector, duplex
- .
- Typical cable length of 500 m 50 /125µm, 300m 62.5 /125µm
- .
- mCon Manager V3
