2280S-60-3

KEITHLEY  2280S-60-3  稳压电源, 1通道, 60V, 3.2A, 可编程

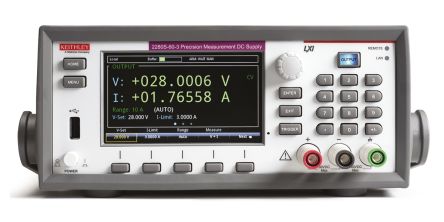

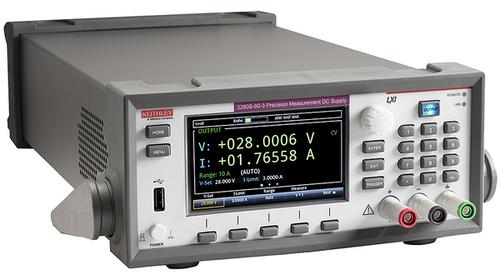

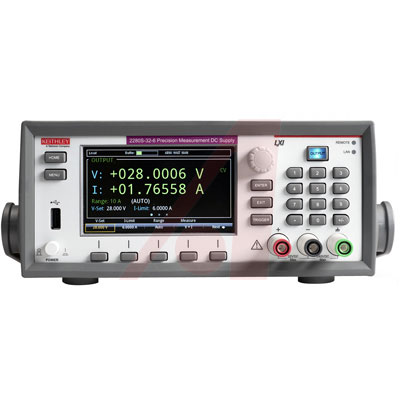

The Series 2280S Precision Measurement, Low Noise, Programmable DC Power Supplies are much more than just sources of clean power; they are also precision measurement instruments. They can source stable, low noise voltages as well as monitor load currents over a wide dynamic range from amps to nanoamps.

.

Monitor load currents from 100nA to 6A with high accuracy

.

Measure voltage and current with 61/2-digit resolution

.

Capture dynamic load currents as short as 140µs

.

Output up to 192W of low noise, linear regulated power

.

Programmable rise and fall times eliminate voltage overshoot and undershoot transients

.

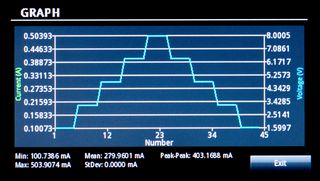

Built-in graphing simplifies analysing trends or displaying voltage or current waveforms

.

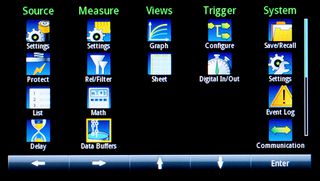

High resolution TFT display and soft-key/icon-based user interface simplify power supply operation

.

Programmable output sequences reduce test times

.

Sink up to 0.45A to discharge voltage quickly

.

Digital I/O for direct communication with other devices and instruments

.

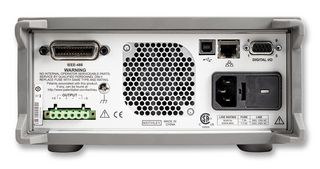

GPIB, USB, and LAN interfaces

.

Built-in web page simplifies automated control/monitoring

.

Automate tests easily with KickStart start-up software

.

3 Year manufacturer warranty
