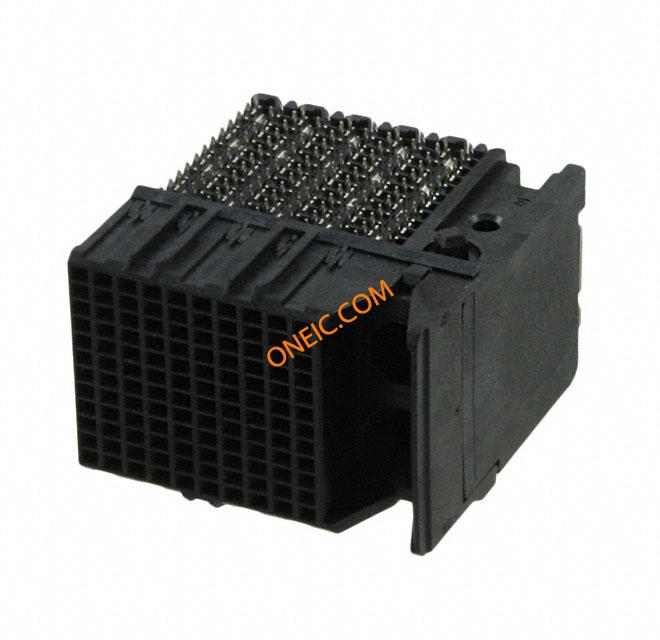

2007715-1

Conn Backplane RCP 120POS 1.9mm Solder RA Thru-Hole

This backplane connector from is ideal for linking multiple connectors together. This RCP connector"s 80signal / 40ground contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 1.9 mm. It has a maximum voltage rating of 120 VDC|120VAC. It has a right angle body orientation. This is a 12-row connector. It has a receptacle type gender. This device has a maximum current rating of 0.75 A/contact. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This backplane connector has an operating temperature of -55 to 85 °C. 2007715-1 is housed in liquid crystal polymer. It uses the solder termination method. This product is 26.6 mm long, 19.4 mm tall and 28.2 mm deep.
