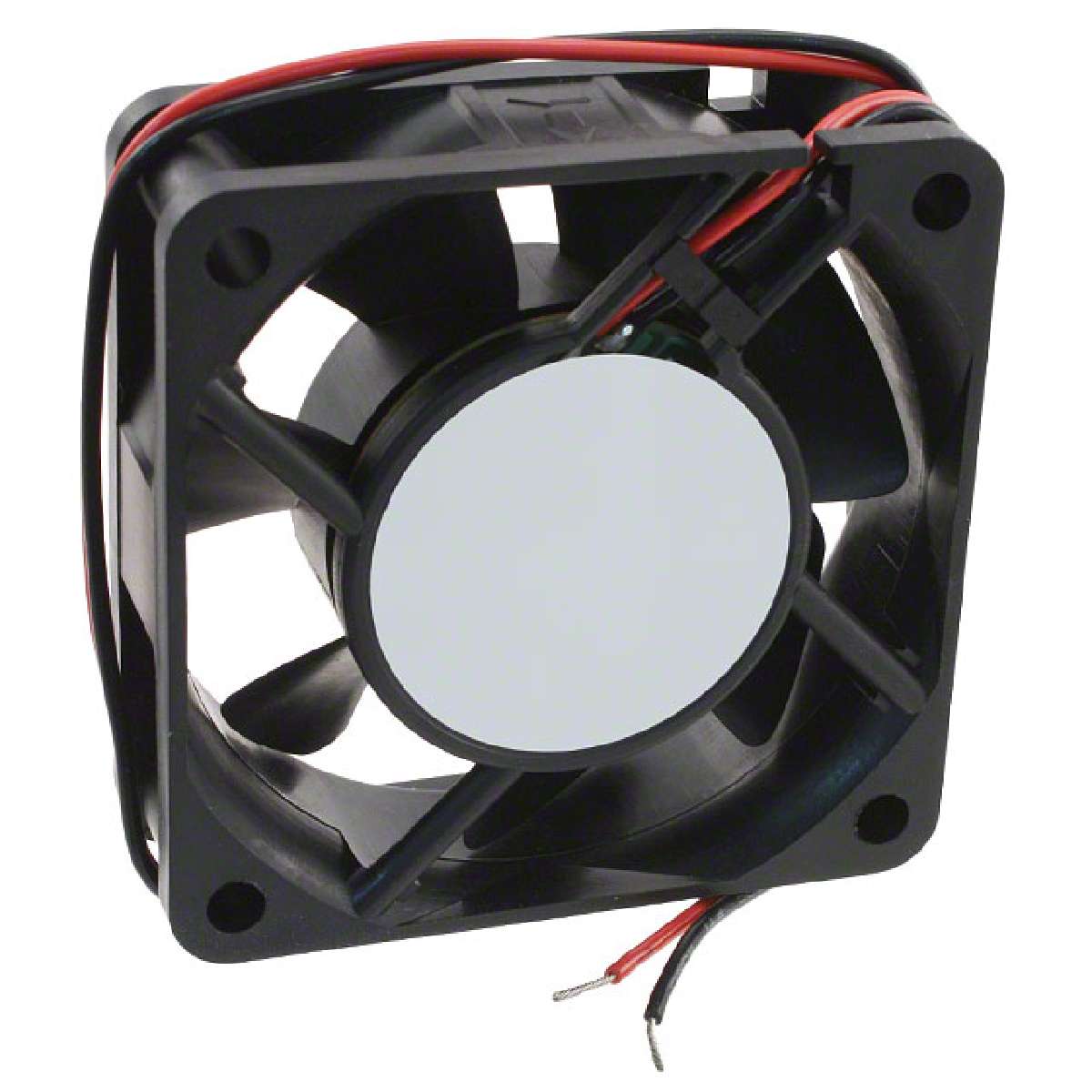

DC Fan Axial Ball Bearing 24V 15V to 27.6V 14.83CFM 27dB 60 X 60 X 20mm
The 24048NL series DC Axial Fan is the most commonly used variety of cooling fan. Also called box fan on occasion, they move air on a straight axis through the fan. This kind of fan functions best under a low pressure or low system impedance environment. With reduced fan speed the noise produced by an axial fan can be kept at a minimum. Because of this low level of audible noise, this kind of fan is extensively used in PCs, for both CPU and power supply cooling. The DC Axial fans blow air along the axis of the fan or parallel to the track of the blade axis. The amount of airflow that a fan generates is measured in cubic feet per minute CFM and the rotational speed in revolutions per minute RPM. DC axial fans are found in a variety of applications, including computing, servers, telecommunication cabinets and any type of equipment where the need for thermal control is necessary for the improved reliability and life extension of the components that are included in the system.
电源电压DC 24.0 V
额定电压DC 24.0 V
额定电流 0.045 A
额定功率 1.08 W
输入电压DC 24.0 V
易燃性等级 UL 94 V-0
功耗 1.08 W
工作温度Max 70 ℃
工作温度Min -10 ℃
额定电压 24 VDC
电源电压 24 VDC
长度 60 mm
宽度 20.00 mm
高度 60 mm
脚长度 300 mm
颜色 Black
材质 Plastic
重量 84.82 g
工作温度 -10℃ ~ 70℃
产品生命周期 Active
制造应用 Communications & Networking, Industrial, HVAC, Thermal Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2408NL-05W-B30-L00 NMB Technologies | 当前型号 | 当前型号 |
MC36296 Multicomp | 功能相似 | 2408NL-05W-B30-L00和MC36296的区别 |
