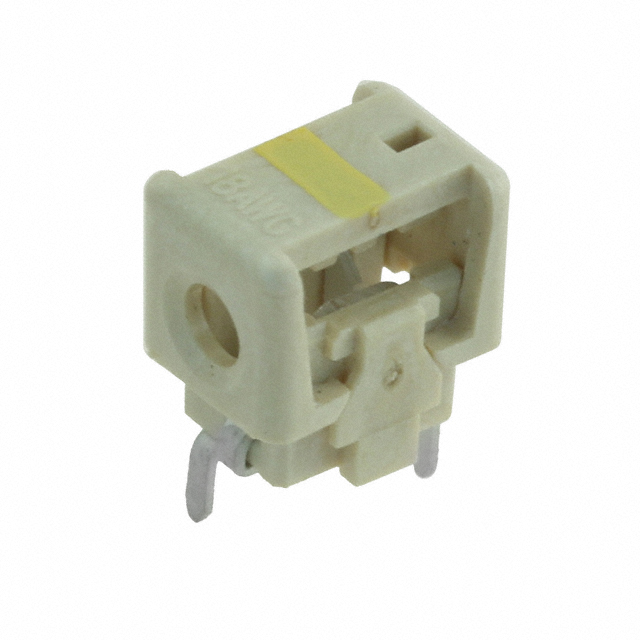

照明连接器 1 Position 22 AWG Thru Hole Closed End
1 位置 单条导线 天然 IDC 22 AWG 通孔,直角
得捷:
CONN WIRE IDC 1POS 22AWG PCB RA
贸泽:
照明连接器 1 Position 22 AWG Thru Hole Closed End
安富利:
Conn IDC Connector M 1 POS IDT RA Cable Mount Tape
Chip1Stop:
Conn IDC Connector 1 POS Solder RA Thru-Hole T/R
Verical:
Conn IDC Connector 1 POS Solder RA Thru-Hole T/R
Newark:
# TE CONNECTIVITY 2-2106489-1 Wire-To-Board Connector, 4 mm, 1 Contacts, Receptacle, SSL Series, Through Hole, 1 Rows
MASTER:
ASSEMBLY, IDC SSL CONNECTOR, THROUGH HOLE, CLOSED END
Powell:
Lighting Connectors 1 Position 22 AWG Thru Hole Closed End
Online Components:
Connector, Thru Hole-IDC, 1 pos, 22AWG
Electro Sonic:
Connector, Thru Hole-IDC, 1 pos, 22AWG
触点数 1
极性 Female
线规 22 AWG
触点电镀 Tin
排数 1
易燃性等级 UL 94 V-0
针脚数 1
额定电流Max 9A/触头
安装方式 Through Hole
长度 5.7 mm
宽度 7.75 mm
高度 8 mm
外壳颜色 Green
颜色 Natural
触点材质 Copper Alloy
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2-2106489-1 TE Connectivity 泰科 | 当前型号 | 当前型号 |
