2000895-1概述

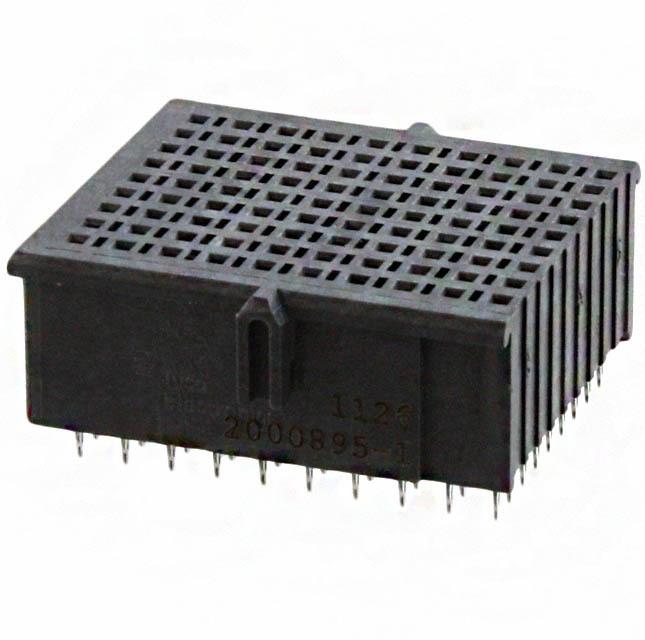

TE CONNECTIVITY 2000895-1 Connector, Backplane, 90Contacts, Receptacle, 1.4mm, Through Hole

Fortis Zd 10 Col vert end mod assy


得捷:
CONN RCPT 90POS PCB


艾睿:
TE Connectivity brings you their latest 2000895-1 backplane connector, a connector that can be used to transfer multiple bits of data from one computer system to another. This RCP connector&s;s 90 contacts that are made out of copper alloy and plated with gold over nickel. This is a 9-row connector. It has a receptacle type gender. It has a straight body orientation. It uses the press fit termination method. This backplane connector has an operating temperature of -65 to 125 °C. 2000895-1 is housed in black liquid crystal polymer. This product is 7.43 mm tall.


安富利:
Conn Backplane RCP 90 POS Press Fit ST Thru-Hole


Chip1Stop:
Conn Backplane RCP 90 POS Press Fit ST Thru-Hole


Verical:
Conn Backplane RCP 90 POS Press Fit ST Thru-Hole Package


Newark:
Connector, Fortis Zd Series, Backplane, 90 Contacts, Receptacle, 1.9 mm, Press Fit


MASTER:
Fortis Zd, 10-COLUMN, 3-PAIR, VERTICAL END MODULE ASSEMBLY


Online Components:
Fortis Zd 10 Col vert end mod assy


Electro Sonic:
Fortis Zd 10 Col vert end mod assy


2000895-1中文资料参数规格
技术参数

触点数 90

极性 Female

触点电镀 Gold, Tin Lead

排数 9

方向 Vertical

易燃性等级 UL 94 V-0

针脚数 90

额定电流Max 1.5A/触头

工作温度Max 125 ℃

工作温度Min -65 ℃

封装参数

安装方式 Through Hole

外形尺寸

长度 19.05 mm

高度 7.43 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Copper Alloy

工作温度 -65℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

ELV标准 Non-Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

2000895-1引脚图与封装图

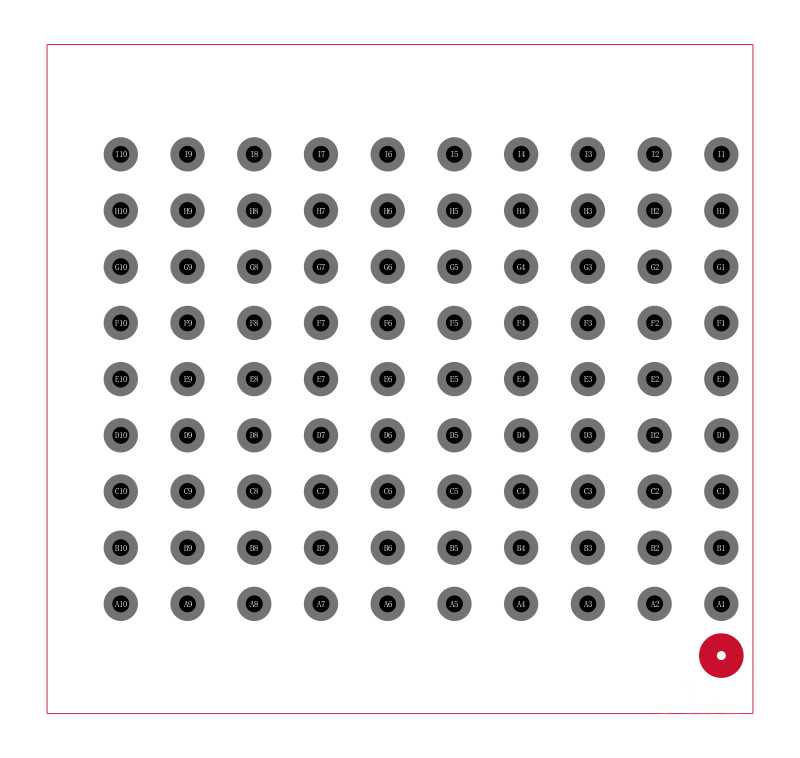

2000895-1引脚图

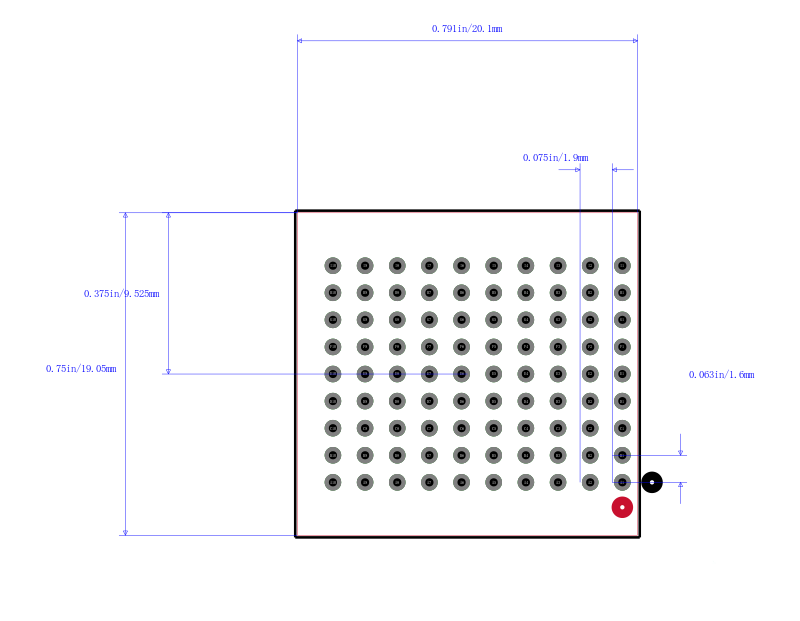

2000895-1封装图
2000895-1封装焊盘图
