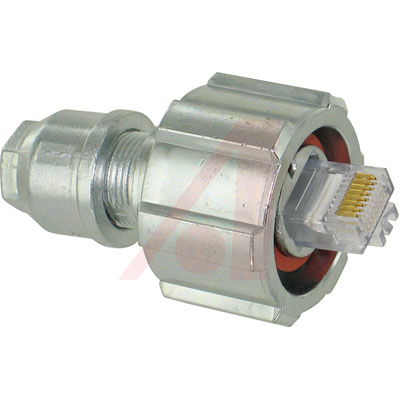

2008611-2图片13
2008611-2图片14

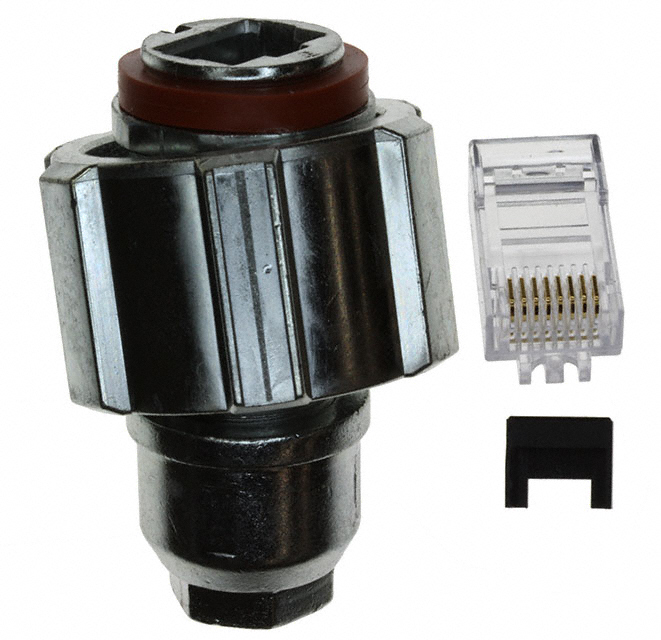

2008611-2图片15
2008611-2图片16
2008611-2图片17
2008611-2概述

TE CONNECTIVITY  2008611-2  密封以太网连接器

插头 模块化 8p8c(RJ45,以太网) 位置 无屏蔽 Cat5e IDC


得捷:
CONN MOD PLUG 8P8C UNSHIELDED


e络盟:
密封以太网连接器


艾睿:
Add an extra layer of protection for the bind between the cable and the device with this rj-45 2008611-2 telephone and telecom connector from TE Connectivity. This PL connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. This connector has a single port. It has a plug type gender. It has a straight body orientation. 2008611-2 is housed in zinc. This cable has an operating temperature of -40 to 85 °C. This product is 35 mm long and 59.9 mm.


Allied Electronics:
Connector, Plug Kit, IP67, ODVA Compliant, Metal Shell, Solid Wire


安富利:
Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e


Chip1Stop:
Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e


Verical:
Conn RJ-45 PL 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Cat 5e Bag/Box


Newark:
# TE CONNECTIVITY  2008611-2  Sealed Ethernet, 8 Contact, Plug, RJ45, Cable Mount, Gold Plated Contacts


MASTER:
PLUG KIT, UNSHIELDED, INDUSTRIAL CIRCULAR ETHERNET CONNECTOR


Powell:
Ethernet & Telecom Connectors Plug Kit Solid Unshielded


Online Components:
UNSHIELDED PLUG KIT,8P SOL WIR


Electro Sonic:
UNSHIELDED PLUG KIT,8P SOL WIR


2008611-2中文资料参数规格
技术参数

触点数 8

极性 Male

触点电镀 Gold over Nickel

针脚数 8

屏蔽 No

工作温度Max 85 ℃

工作温度Min -40 ℃

封装参数

安装方式 Panel

封装 Metal

外形尺寸

长度 59.90 mm

宽度 35 mm

封装 Metal

物理参数

颜色 Silver

触点材质 Phosphor Bronze

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

在线购买2008611-2
型号: 2008611-2
描述:TE CONNECTIVITY  2008611-2  密封以太网连接器
