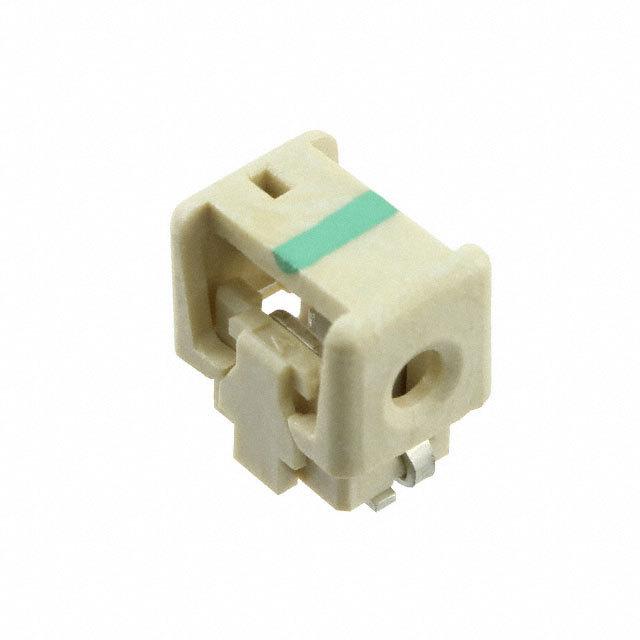

照明连接器 1 Position 22 AWG SMT IDC Closed End
The SSL series single-row Low-profile Connector providing a low power sealed solution. TE"s SlimSeal solid state lighting SSL connectors are developed for indoor/outdoor lighting applications and well suited for any application where low-power 5A, 300V maximum, sealing IP67 and UV resistant UL F1 connections are required. These wire-to-wire interconnects are designed for robust, stable electrical and mechanical wire-to-board connections used in solid state lighting. The SlimSeal SSL connector family is now available in 1, 2, 3 and 4 position sizes in free hanging, wire-to-wire and wire-to-board configurations to meet the growing demand for low power, sealed solutions in outdoor lighting. The connectors accept 18 to 20AWG and 22 and 24 AWG stranded wire to meet your specific design needs.
触点数 1
极性 Female
线规 22 AWG
触点电镀 Tin, Tin over Nickel, Tin Lead
排数 1
易燃性等级 UL 94 V-0
针脚数 1
额定电流Max 9 A
工作温度Max 105 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
高度 8 mm
外壳颜色 Green
颜色 Natural
触点材质 Copper Alloy
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 LED Lighting, Commercial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694040
