27104C概述
表面贴装功率电感器 Surface Mount Power Inductors
The 2700 series ultra-low profile surface-mount Power Inductor with gold-pin finish. It is designed for use in power applications with restricted height, such as handheld devices and DC-DC converters. The maximum DC current is at which the inductance falls to 75% of its nominal value or when its temperature rise reaches 40°C, whichever is sooner.
- .
- Low RDC
- .
- UL94V-0 Flammability rating
- .
- J-STD-020D reflow
- .
- -40 to 125°C Operating temperature range
27104C中文资料参数规格
技术参数
额定电流 350 mA
电感 100 µH
电感公差 ±20 %
电阻DC） 1.3 Ω
电阻DC Max 1.3 Ω
封装参数
安装方式 Surface Mount
引脚数 2
封装 9mm x 7.7mm x 1.65mm
外形尺寸
宽度 7.7 mm
封装 9mm x 7.7mm x 1.65mm
物理参数
工作温度 -40℃ ~ 125℃
其他
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 电源管理, Industrial, Power Management, 工业
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17

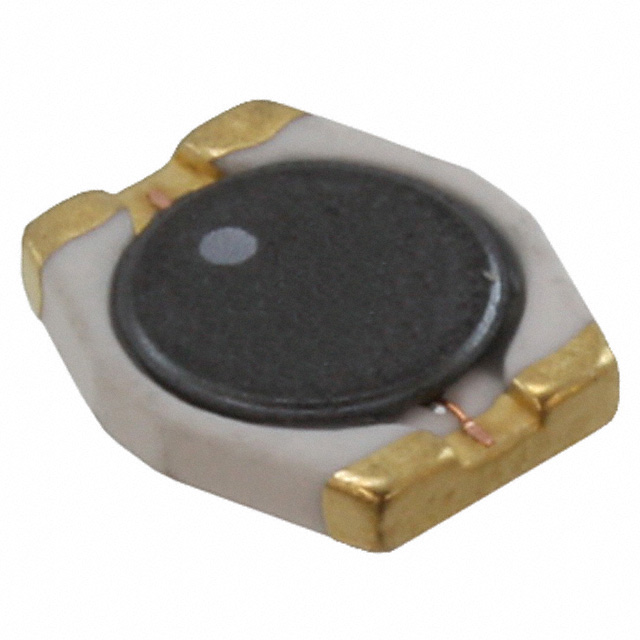

27104C引脚图与封装图
