TE CONNECTIVITY 2173470-1. 发光二极管插座, PHILIPS LUMILEDS LUXEON K系列LED

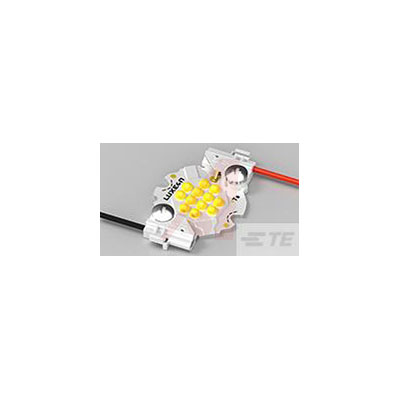

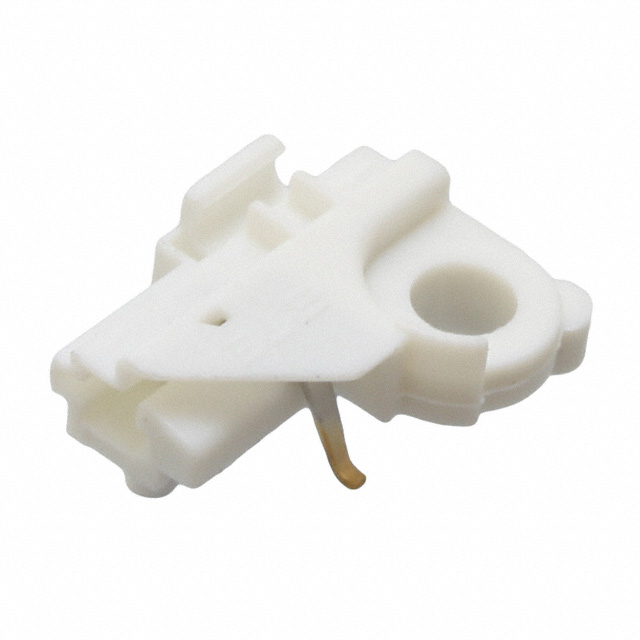

The is a Solderless LUMAWISE Socket, type LK is a quick termination connector system for use with the Philips Lumileds LUXEON® K LED series. This socket allows the direct attachment of LEDs to a heat sink using a standard M3 screw. The TE Solderless LED socket, type LK features a quick poke-in wire termination for 22 and 24 AWG wire. The connector design accommodates two wire routing options - straight or use of a wire dress hook. This low profile socket can be used for the all Philips Lumileds LUXEON® K models - 4, 8, 12, 16 and 24 up LEDs.
触点数 1
触点电镀 Gold
排数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
长度 14.28 mm
宽度 11.5 mm
高度 4.5 mm
触点材质 Copper Alloy
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tray
制造应用 LED Lighting, 发光二极管照明
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536694040
