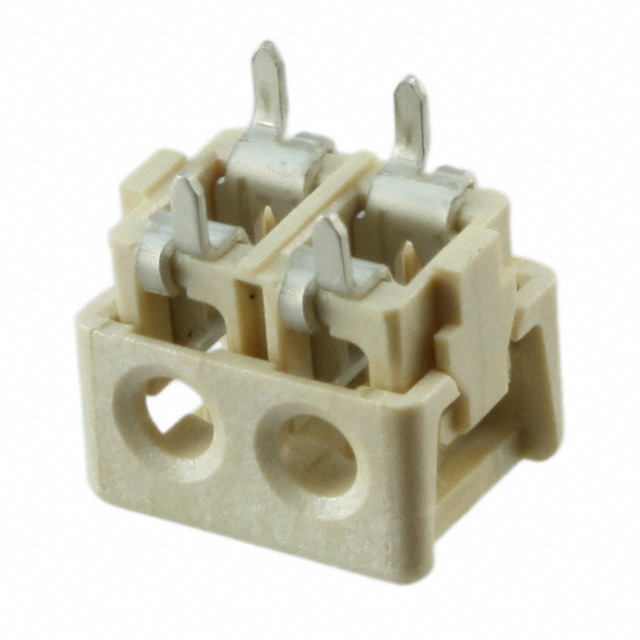

IDC SSL 系列 2 位置 18 AWG 通孔 馈通 连接器
2 位置 单条导线 天然 IDC 18AWG 通孔,直角
得捷:
CONN WIRE IDC 2POS 18AWG PCB RA
贸泽:
照明连接器 2 Position 18 AWG Thru Hole Feed Thru
艾睿:
TE Connectivity brings you their idc connector 2106751-2 header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector&s;s 2 contacts that are made out of copper alloy and plated with tin over nickel. It has a header type gender. This is a 2-row connector. It has a right angle body orientation. It has a maximum voltage rating of 250 VDC|250VAC. This device has a maximum current rating of 8 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C. This product is 9.7 mm long, 5.8 mm tall and 7.75 mm deep. 2106751-2 is housed in yellow liquid crystal polymer.
Allied Electronics:
Connector; Lighting; Thru Hole-IDC; 2 Position; 18AWG
安富利:
Conn IDC Connector HDR 2 POS IDT RA Cable Mount T/R
Chip1Stop:
Conn IDC Connector HDR 2 POS IDT RA Cable Mount T/R
Verical:
Conn IDC Connector HDR 2 POS Solder RA Thru-Hole T/R
Newark:
# TE CONNECTIVITY 2106751-2 Wire-To-Board Connector, 4 mm, 2 Contacts, Receptacle, SSL Series, Through Hole, 1 Rows
MASTER:
ASSEMBLY, IDC SSL CONNECTOR, THROUGH HOLE, PASS THRU
Powell:
Lighting Connectors 2 Position 18 AWG Thru Hole Feed Thru
Online Components:
Connector, Thru Hole-IDC, 2 pos, 18AWG
触点数 2
极性 Female
线规 18 AWG
触点电镀 Tin, Tin over Nickel, Tin Lead
工作电压 400 VDC
排数 1
易燃性等级 UL 94 V-0
针脚数 2
额定电流Max 8.5A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
安装方式 Through Hole
长度 9.7 mm
宽度 7.75 mm
高度 8 mm
外壳颜色 Yellow
颜色 Natural
触点材质 Copper Alloy
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Commercial, LED Lighting
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694040
