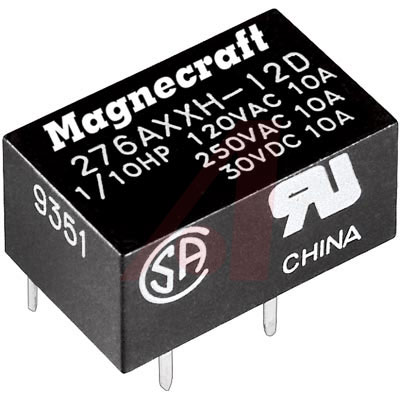

Power Relay, SPST-NO, 12VDC, 10A, 276 Series, Through Hole, DC
**276 Series**
276 series PCB relays which offer high switching capacity in a small package.
Allied Electronics:
Relay; E-Mech; Power; SPST-NO; Cur-Rtg 10A; Ctrl-V 12DC; Vol-Rtg 240/30AC/DC; PCB Mnt
Newark:
Power Relay, SPST-NO, 12 VDC, 10 A, 276 Series, Through Hole, DC
MASTER:
Electromechanical Relay 12VDC 720Ohm 10A SPST-NO 20.5x12.7x10mm THT Power Relay
Online Components:
Electromechanical Relay 12VDC 720Ohm 10A SPST-NO 20.5x12.7x10mm THT Power Relay
Electro Sonic:
Electromechanical Relay 12VDC 720Ohm 10A SPST-NO 20.5x12.7x10mm THT Power Relay
额定电流 10 A
触点类型 SPST-NO
功耗 200 mW
线圈电压 12 VDC
线圈电流 16.67 mA
线圈电阻 720 Ω
额定电流Max 10 A
线圈电压DC 12 V
额定电压 240 VAC
额定电压DC Max 30 V
额定电压AC Max 240 V
安装方式 PC Board, PCB
引脚数 5
触点材质 Silver Alloy
工作温度 -40℃ ~ 70℃
产品生命周期 100000 Cycles
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536410050
