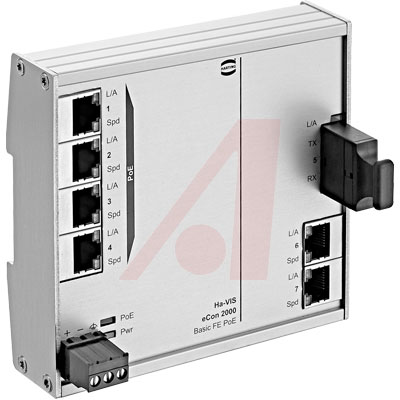

6 RJ45 port DIN Rail Mount Unmanaged Ethernet Switch, 10/100Mbit/s
The Ha-VIS eCon 2000 Fast Ethernet PoE family of unmanaged Ethernet switches is equipped with up to 8 Fast Ethernet ports and allow for cost-efficient and quick expansion and/or reconstruction of network infrastructures. The switches work as power sourcing equipment PSE and are capable of simultaneously providing the full PoE output of 34.2 watts on up to four ports. Due to the extremely flat design, these switches can be accommodated in installations where space is restricted towards the cable connection at the front. The selection includes various combinations of variants with RJ45 and fibre optic ports. Automatic detection of the transmission rate auto-negotiation and of the wiring of the twisted pair data cable auto-polarity and auto-MDIX allow for simple plug and play. All variants are available with the temperature ranges “Industrial” and “Commercial”.
**Features:**
* Energy Supply of Up to 4 Terminal Devices via PoE+ 137 Watts in Accordance with IEEE 802.3at
* Fast Ethernet Non-Blocking Switch Architecture in Accordance with IEEE 802.3
* Variants with Industrial Temperature Range of –40°C to +70°C
* Surge Protection and Reverse Polarity Protection
* Minimum Energy Consumption Due to Energy Efficient Ethernet
