218-104

4 位置 2.5 mm 间距 28-20 AWG 笼式紧固 PCB 接线端子条

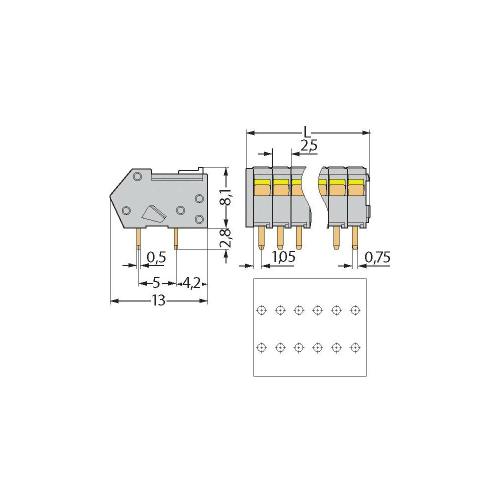

The from Wago is a gray colour, 4 pole CAGE CLAMP PCB terminal block with locking slides. This terminal strip is 8.1mm high and features an innovative, locking slide-actuated CAGE CLAMP connection. This terminal block has CCA, CSA, KEMA and UR Underwriters Laboratories Inc approvals.

.

80V rated voltage III/3, 2.5KV rated impulse voltage III/3, 6A rated current

.

2.5mm pin spacing

.

Easy termination of stranded conductors in tight spaces

.

0.08mm² to 0.5mm² 28AWG to 20AWG solid conductors tool operated termination

.

0.08mm² to 0.5mm² 28AWG to 20AWG fine-stranded conductors tool operated termination

.

Strip length is 5mm to 6mm

.

Solder pin length is 2.8mm

.

Insulating material is polyamide 66 PA 66, flammability rating per UL 94 V0

.

Clamping spring material is chrome nickel spring steel CrNi

.

Contact material electrolytic copper Ecu and contact plating is tin
