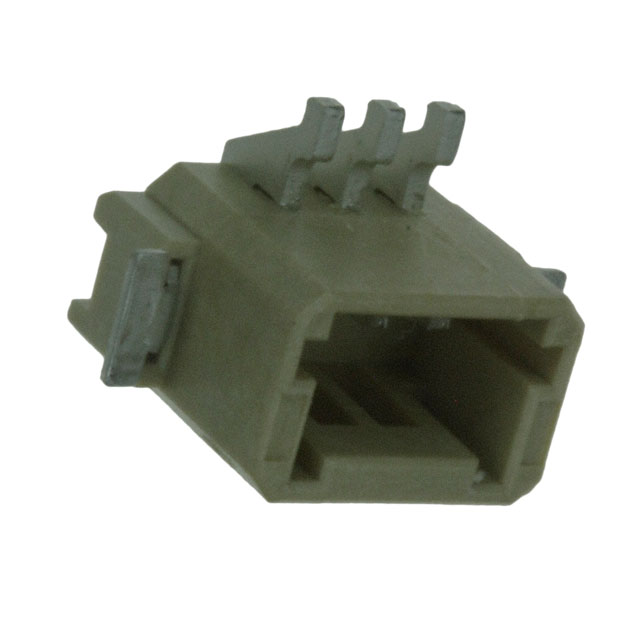

3 位置 0.059 英寸 反向 表面贴装 穿板式 线对板 连接器
3 pos Inverted Thru Board SMT Header
得捷:
CONN HEADER SMD T/H 3POS 1.5MM
艾睿:
Reduce safety concerns with this wire to board 2106091-2 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This RCP connector&s;s 3 contacts that are made out of copper alloy and plated with tin over nickel. It has a straight body orientation. Its pitch is 1.5 mm. This is a 1-row connector. It has a receptacle type gender. It has a maximum voltage rating of 50 VDC|50VAC. This device has a maximum current rating of 3 A/contact. This product is 10.61 mm long, 6.9 mm tall and 7.25 mm deep. 2106091-2 is housed in thermoplastic. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method.
安富利:
Conn Wire to Board RCP 3 POS 1.5mm Solder ST SMD
Chip1Stop:
Conn Wire to Board RCP 3 POS 1.5mm Solder ST SMD
Verical:
Conn Wire to Board RCP 3 POS 1.5mm Solder ST SMD Box
Newark:
# TE CONNECTIVITY 2106091-2 Wire-To-Board Connector, 1.5 mm, 3 Contacts, Header, Surface Mount, 1 Rows
MASTER:
ASSEMBLY, THRU BOARD INVERTED SMT CONNECTOR
Powell:
LED Interconnects
Online Components:
3 pos Inverted Thru Board SMT Header
Electro Sonic:
3 pos Inverted Thru Board SMT Header
触点数 3
极性 Male
触点电镀 Tin, Tin over Nickel, Tin Lead
额定电压AC 70.0 V
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 3
额定电流Max 3A/触头
额定电压 50 VAC
安装方式 Surface Mount
长度 10.61 mm
宽度 4.7 mm
高度 6.9 mm
外壳颜色 Natural
颜色 Natural
触点材质 Copper Alloy
材质 Thermoplastic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Box
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536694040
