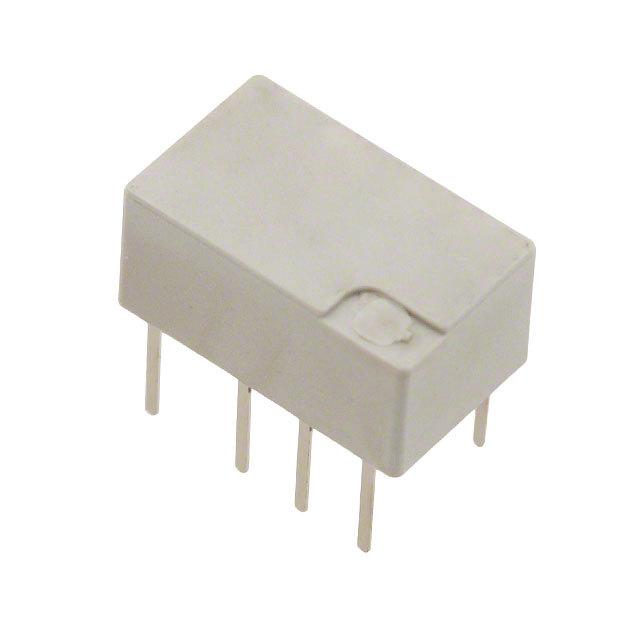

Electromechanical Relay 4.5VDC 405Ω 2A DPDT 10mm 6mm 5.65mm THT Signal Relay Automotive
IM22TS=IM RELAY 50 MW 4.5 V
得捷:
RELAY TELECOM DPDT 2A 4.5VDC
艾睿:
Signal Relay 4.5VDC 2A DPDT 10mm 6mm 5.65mm THT Medical
安富利:
Relay Signal DPDT 250VAC 4.5VDC PC Pins Through Hole Tube
Chip1Stop:
Electromechanical Relay 4.5VDC 405Ohm 2A DPDT 10x6x5.65mm THT Signal Relay
Verical:
Electromechanical Relay 4.5VDC 405Ohm 2A DPDT 10mm 6mm 5.65mm THT Signal Relay Automotive
MASTER:
IM-Relay Marking
Online Components:
IM22TS=IM RELAY 50 MW 4.5 V
Electro Sonic:
IM22TS=IM RELAY 50 MW 4.5 V
Win Source:
RELAY TELECOM DPDT 2A 4.5VDC / Telecom Relay DPDT 2 Form C Through Hole
触点电镀 Gold
触点类型 DPDT
线圈电压 4.5 VDC
线圈电流 11.11 mA
线圈电阻 405 Ω
额定电流Max 2 A
线圈电压DC 4.5 V
线圈功率 50 mW
开关电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 220 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 8
封装 DIP
长度 10 mm
宽度 10 mm
高度 5.65 mm
封装 DIP
触点材质 Palladium, Ruthenium, Gold
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410050
