2440

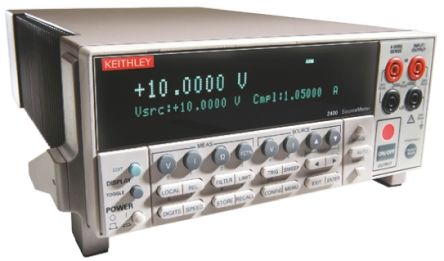

KEITHLEY  2440.  源测量单元, 数字源表, ± 200mV至± 40V, ± 10µA至± 5A, 50 W

The 5A SourceMeter Instrument further broadens the capabilities offered by our popular SourceMeter line. The dynamic range and functionality of our Model 2440 makes it ideal for your applications such as testing high power pump lasers for use in optical amplifiers, laser bar testers, and testing other higher power components. The Model 2440"s 5A source and measure capability also extends the range of our L-I-V Test System. Manufacturers of pump laser modules, optical amplifiers, and computer, automotive, and consumer electronics products will find it invaluable for a wide range of design and production test applications.

.

Five instruments in one IV Source, IVR Measure

.

Seven models: 20 - 100W DC, 1000W pulsed, 1100V to 1«V, 10A to 10pA

.

Source and sink 4-quadrant operation

.

0.012% basic measure accuracy with 5½-digit resolution

.

2-, 4-, and 6-wire remote V-source and measure sensing

.

1700 readings/second at 4½ digits via GPIB

.

Pass/Fail comparator for fast sorting/binning

.

High speed, sense lead, contact check function available

.

Programmable DIO port for automation/handler/prober control

.

Standard SCPI GPIB, RS-232, and Trigger Link interfaces

.

Keithley LabTracer 2.0 I-V curve tracing application software download
