Switch Toggle ON None ON SPDT Flat Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads

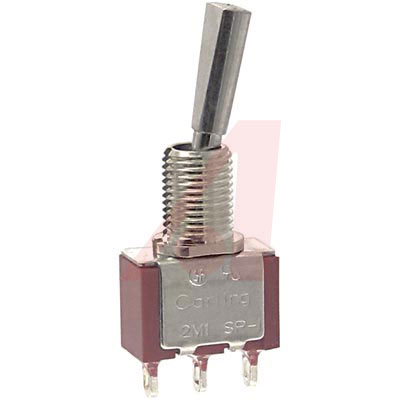

SPDT 2M-Series Miniature Toggle Switch
* Stainless steel housing
* Contact Rating: 5 A @ 125 VAC or 28 VDC, 2 A @ 250 VAC
* Operating Temperature: -30°C to +85°C
* Stainless Steel Housing
* Epoxy Sealed
* UL/CSA Approved
Allied Electronics:
Switch, MINI Toggle, 1 POLE, ON-NONE-ON, Solder LUG
Chip1Stop:
Switch Toggle ON None ON SPDT Flat Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads
Verical:
Switch Toggle ON None ON SPDT Flat Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads
MASTER:
Switch Toggle ON None ON SPDT Flat Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads
Online Components:
Switch Toggle ON None ON SPDT Flat Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads
Electro Sonic:
Switch Toggle ON None ON SPDT Flat Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads
触点电镀 Silver
额定电流 5 A
绝缘电阻 ≥1000 MΩ
方向 Vertical
触点类型 SPDT
针脚数 2
接触电阻 ≤10 MΩ
额定电流Max 5 A
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 250 VAC
额定电压DC Max 28 V
额定电压AC Max 250 V
接触电阻Max 10 mΩ
安装方式 Solder Lug, Panel
长度 12.7 mm
宽度 6.60 mm
高度 33.85 mm
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
