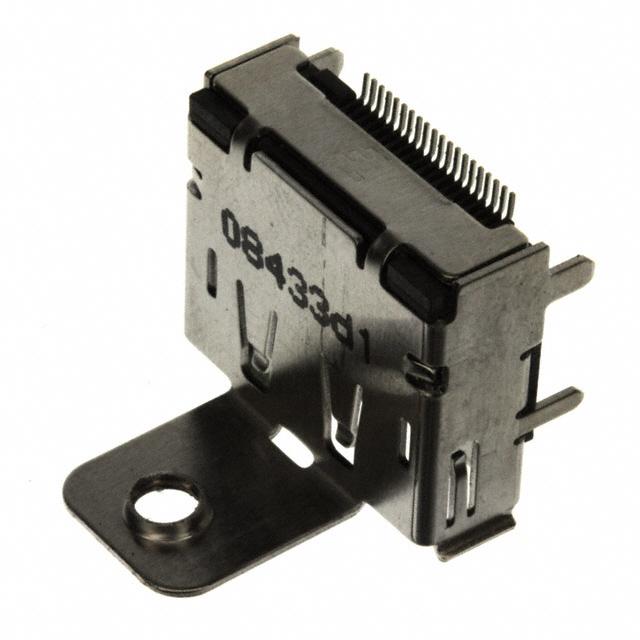

Conn Display Port RCP 20POS 0.5mm Solder RA SMD 20 Terminal 1Port Tray
Conn Display Port RCP 20 POS 0.5mm Solder RA SMD 20 Terminal 1 Port Tray
Search Keywords:
VESA, HDMI, PCs, TV monitors, panels, set-top box, projectors, DVD players, game consoles, mobile devices, personal video records, optical disc players, small footprint, Displayport, audio, video
得捷:
CONN RCP 1.1A DISPLAYPORT SMD RA
安富利:
Conn Display Port RCP 20 POS 0.5mm Solder RA SMD 20 Terminal 1 Port Tray
富昌:
RECE ASSY DP RA SMT STD TH-LEG W-FLANGE
Verical:
Conn Display Port RCP 20 POS 0.5mm Solder RA SMD 20 Terminal 1 Port Tray
Newark:
# AMP - TE CONNECTIVITY 2040204-1 DisplayPort Digital Audio Connector, 20 Contacts, Receptacle, PCB Mount, Gold Plated Contacts
MASTER:
Conn Display Port RCP 20 POS 0.5mm Solder RA SMD 20 Terminal 1 Port Tray
Powell:
Audio and Video Interconnect
Online Components:
Conn Display Port RCP 20 POS 0.5mm Solder RA SMD 20 Terminal 1 Port Tray
AMEYA360:
Connector Receptacle DisplayPort Display Port 1.1a 20 Position Surface Mount, Right Angle, Horizontal
Electro Sonic:
Conn Display Port RCP 20 POS 0.5mm Solder RA SMD 20 Terminal 1 Port Tray
触点数 20
极性 Female
触点电镀 Gold
易燃性等级 UL 94 V-0
针脚数 20
拔插次数 10000
额定电流Max 0.5A/触头
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 40 VAC
额定电压 40 VAC
安装方式 Surface Mount
封装 SMD
长度 16.9 mm
高度 15.93 mm
封装 SMD
外壳颜色 Black
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
外壳材质 Thermoplastic
产品生命周期 Obsolete
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
