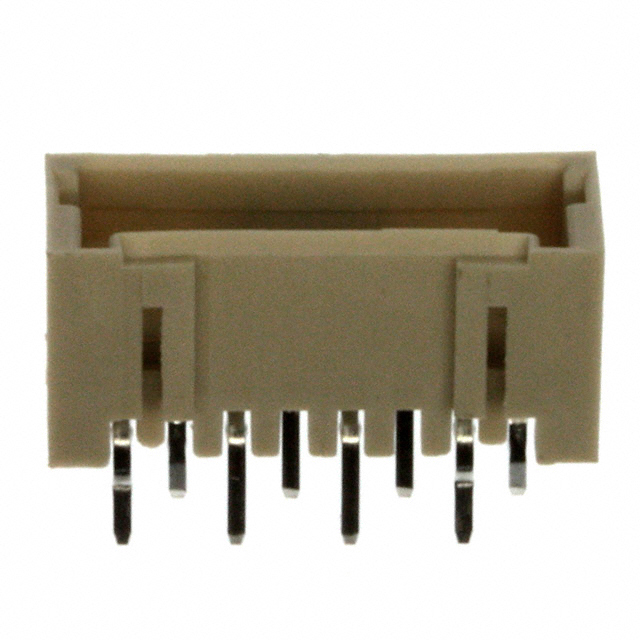

292207-8

Mini CT 8 位置 通孔 单排 直 1.5 mm 接插柱插头

MINI CT SGL DIP V 8P NAT

Product Highlights

Post Header

Connector Type = DIP

Number of Positions = 8

Without Panel Attachment

Terminate To Printed Circuit Board

得捷:
CONN HEADER VERT 8POS 1.5MM

立创商城:
1.5mm 1x8P 直插

艾睿:

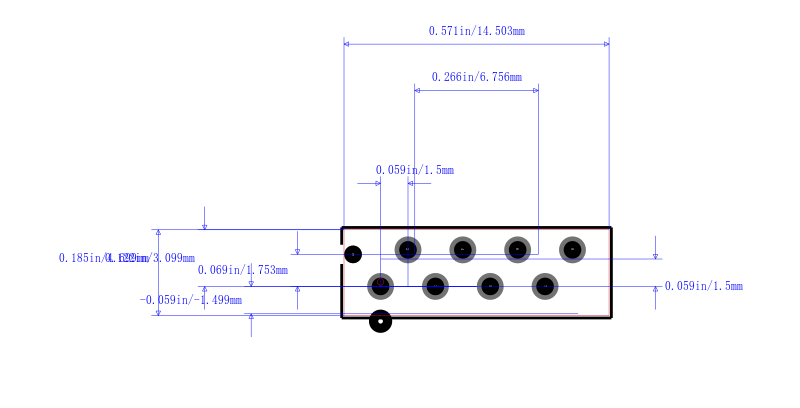

Easily mount this shrouded 292207-8 header connector from TE Connectivity onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 8 contacts that are made out of brass and plated with pre-tin. It has a maximum voltage rating of 50 VDC|50VAC. Its pitch is 1.5 mm. It has a header type gender. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 2 A/contact. This component will be shipped in tray format. This connector has an operating temperature of -30 to 105 °C. It uses the solder termination method. 292207-8 is housed in gray nylon. This product is 14.5 mm long, 6.9 mm tall and 4.7 mm deep.

安富利:
Conn Shrouded Header HDR 8 POS 1.5mm Solder ST Thru-Hole Loose Piece

Chip1Stop:
Conn Shrouded Header HDR 8 POS 1.5mm Solder ST Thru-Hole Loose Piece

Verical:
Conn Shrouded Header HDR 8 POS 1.5mm Solder ST Thru-Hole Box/Tray

MASTER:
AMP Mini CT Connector 1.5mm Pitch

Powell:
1.5mm AMP Mini CT

Online Components:
MINI CT SGL DIP V 8P NAT

Electro Sonic:
MINI CT SGL DIP V 8P NAT
