TE CONNECTIVITY  2213627-4  连接器, 母, 7路, 电缆 新

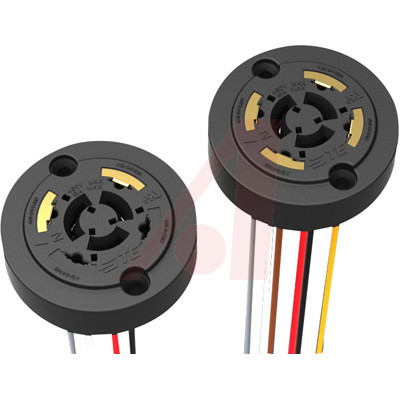

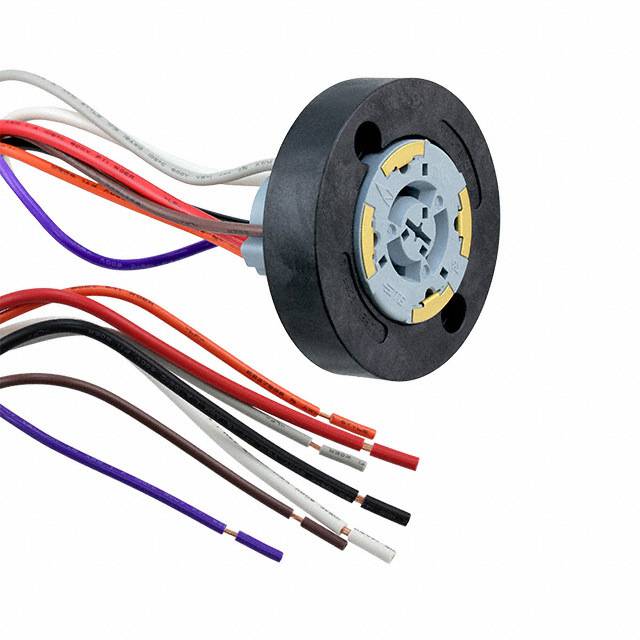

TE"s ANSI C136.41 compliant LUMAWISE rotatable dimming receptacle is a two-piece assembly which allows full rotation up to 355 degrees. The ability to fully rotate the dimming receptacle facilitates installation as it allows the photo node to be pointed due north in any type of street, area or roadway lighting application.


得捷:
ASSEMBLY, ROT DIM REC 49.22MM 7


欧时:
ASSEMBLY, ROT DIM REC 49.22MM 7 POS 105C


贸泽:
照明连接器 ASSEMBLY ROT DIM REC 49.22MM 7 POS 105C


e络盟:
连接器, 母, 7路, 电缆


艾睿:
Cable Assembly DC Power 0.304m Power 3Power/4Signal POS RCP Crimp 14-18AWG


Allied Electronics:
ASSEMBLY, ROT DIM REC 49.22MM 7 POS 105C


安富利:
Cable Assembly UL 1015 0.305m 14-18AWG 7POS Power RCP Box


富昌:
4 信号触点 ANSI C136.41 可旋转 调光 插座


Verical:
Cable Assembly DC Power 0.304m Power 3Power/4Signal POS RCP Crimp 14-18AWG


Newark:
# TE CONNECTIVITY  2213627-4  Rectangular Connector, 7 Contacts, Receptacle, Crimp


2213627-4中文资料参数规格
技术参数

触点数 7

极性 Female

触点电镀 Tin, Gold

额定电流 15 A

易燃性等级 UL 94 V-0

额定电流Max 15A/触头

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压 600 V

额定电压AC Max 600 V

外形尺寸

电缆长度 0.304 m

物理参数

外壳颜色 Black

颜色 Black

触点材质 Copper Alloy

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Box

制造应用 Power, Signal

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买2213627-4
型号: 2213627-4
描述:TE CONNECTIVITY  2213627-4  连接器, 母, 7路, 电缆 新
