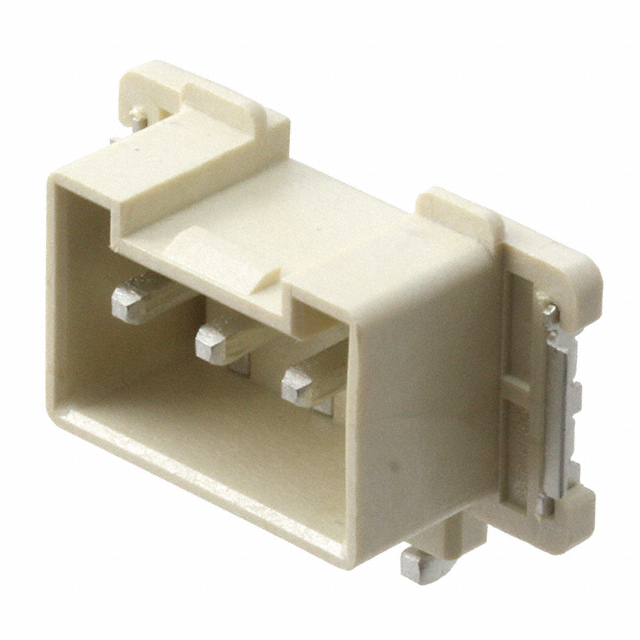

AMP FROM TE CONNECTIVITY 2154829-2. 连接器, 针座, 3路, 1排, 3.96MM
固态照明 3 位置 接头,公引脚 板至电缆/导线 0.156"(3.96mm) 焊接
得捷:
CONN SSL HDR 3POS 3.96MM SOLDER
e络盟:
线至板连接器, 3 触点, 针座, 3.96 mm, 表面安装 , 1 排
艾睿:
This robust 2154829-2 power connector from TE Connectivity easily retains normal operation in harsh and stressful environments. This HDR connector&s;s 3 contacts that are made out of copper alloy and plated with gold over nickel. It has a header type gender. Its pitch is 3.96 mm. This connector has a single port. It has a straight body orientation. It has a maximum voltage rating of 600 VDC|600VAC. This device has a maximum current rating of 7 A. 2154829-2 is housed in liquid crystal polymer. This product is 21.34 mm long and 15.3 mm. This power connector has a minimum operating temperature of -30 °C and a maximum of 105 °C. Its 3 terminals use the solder termination method.
富昌:
3 位置 3.96 mm 间距 大功率 反向 通板 插头
Verical:
Conn Power HDR 3 POS 3.96mm Solder ST SMD 3 Terminal 1 Port Package
Newark:
# AMP - TE CONNECTIVITY 2154829-2 Wire-To-Board Connector, 3.96 mm, 3 Contacts, Header, Surface Mount, 1 Rows
MASTER:
ASSEMBLY INVERTED THRU BOARD 2 THRU 4 POSITIONS 3.96 PITCH
Online Components:
High Power Inverted Thru Board Con 3 Pos
Electro Sonic:
High Power Inverted Thru Board Con 3 Pos
触点数 3
极性 Male
触点电镀 Tin, Tin over Nickel
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 3
额定电流Max 7A/触头
工作温度Max 105 ℃
工作温度Min -30 ℃
额定电压 600 V
安装方式 Surface Mount
长度 21.34 mm
宽度 15.3 mm
高度 8.4 mm
外壳颜色 Natural
颜色 Natural
触点材质 Copper Alloy
工作温度 -30℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694040
