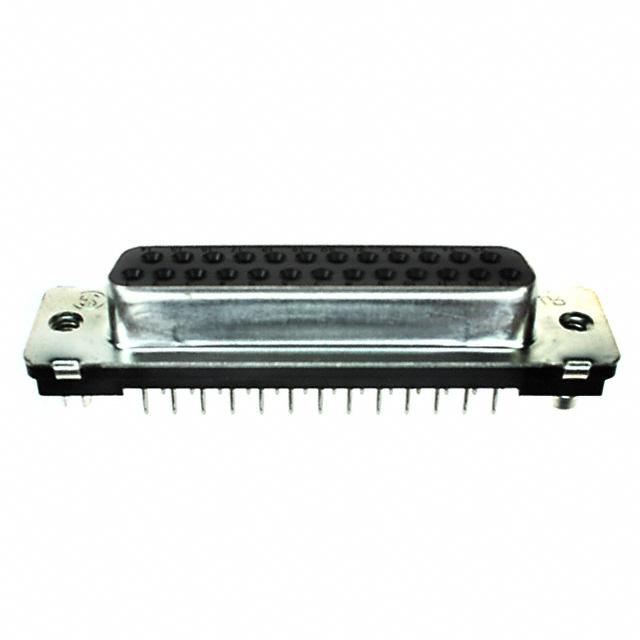

2-747708-0

HD20 系列 25 位置 直插座 板安装 D-Sub

25 位 D-Sub 插座，母型插口

得捷:
CONN D-SUB RCPT 25POS VERT SLDR

艾睿:
Using the 2-747708-0 DVI connector from TE Connectivity is fast and easy for communicating between serial connections in your circuit. This socket type connector&s;s 25 contacts that are made out of phosphor bronze and plated with gold over nickel. This 2-row connector has a single port. It has a straight body orientation. It has a maximum voltage rating of 250 VDC|250VAC. Its pitch is 2.77 mm. 2-747708-0 is housed in thermoplastic. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This DVI connector has an operating temperature of -55 to 105 °C. Its 25 terminals use the solder termination method. This product is 53.03 mm long, 12.16 mm tall and 12.54 mm deep.

Allied Electronics:
Conn; D-Sub; PCB Socket; 25Pos; STR; HD-20Series; 20AWG; FrontMetalShell

Jameco:
Connector D-Subminiature Socket 25 Position 2.77 mm Solder Straight Thru-Hole 25 Terminal 1 Port

安富利:
Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port

Chip1Stop:
Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port

Verical:
Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Tube

MASTER:
RECEPTACLE ASSEMBLY, SIZE 3, 25 POS., VERTICAL, .026 DIA. DUPLEX PLATED POSTS, FRONT SHELL, AMPLIMITE

Powell:
Standard Board Mount Connectors

Online Components:
25 RCPT SP/FMS BRDLK

Electro Sonic:
25 RCPT SP/FMS BRDLK
