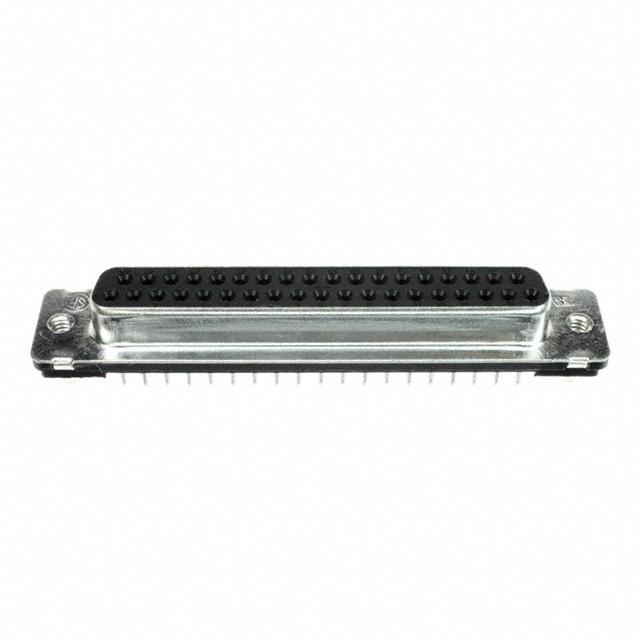

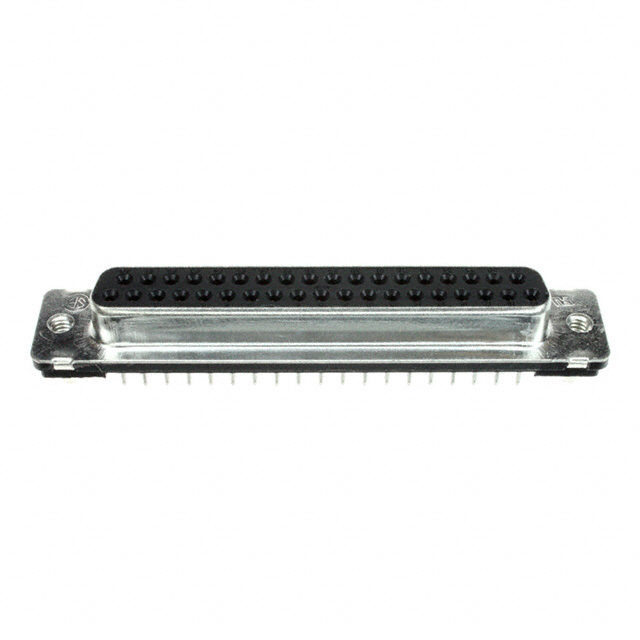

HD20 系列 37 位置 双排 直 插座 板安装 D-Sub
37 位 D-Sub 插座,母型插口
得捷:
CONN D-SUB RCPT 37POS VERT SLDR
贸泽:
D-Sub标准连接器 DSUB C37S V/MNT
艾睿:
The 2-5747709-0 DVI connector from TE Connectivity allows effective communication between your serial connections. This socket type connector&s;s 37 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 250 VDC|250VAC. This 2-row connector has a single port. Its pitch is 2.76 mm. It has a straight body orientation. 2-5747709-0 is housed in polyester. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This DVI connector has an operating temperature of -55 to 105 °C. Its 37 terminals use the solder termination method. This product is 69.31 mm long, 12.16 mm tall and 12.54 mm deep.
Allied Electronics:
Connectors; D-Sub; Standard; DSUB C37S V/MNT
安富利:
Conn D-Subminiature SKT 37 POS 2.76mm Solder ST Thru-Hole 37 Terminal 1 Port
Chip1Stop:
Conn D-Subminiature SKT 37 POS 2.76mm Solder ST Thru-Hole 37 Terminal 1 Port
Verical:
Conn D-Subminiature SKT 37 POS 2.76mm Solder ST Thru-Hole 37 Terminal 1 Port Tube
Newark:
# AMP - TE CONNECTIVITY 2-5747709-0 Standard D Sub Connector, 37 Contacts, Receptacle, DC, AMPLIMITE HD-20 Series, Metal Body, Solder
MASTER:
RECEPTACLE ASSEMBLY, SIZE 4, 37 POS., VERTICAL, .026 DIA. POSTS, FRONT SHELL RETENTION INSERTS, AMPLIMITE HD-20
Powell:
Standard Board Mount Connectors
Online Components:
37 RCPT SP/FMS BRDLK
Electro Sonic:
37 RCPT SP/FMS BRDLK
触点数 37
极性 Female
触点电镀 Gold, Tin, Tin over Copper
额定电流 6 A
绝缘电阻 5000 MΩ
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 37
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 125 V
工作电压Max 250VDC, 250VAC
安装方式 Through Hole
引脚间距 2.77 mm
长度 69.31 mm
宽度 12.54 mm
高度 12.16 mm
引脚间距 2.77 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tube
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2-5747709-0 TE Connectivity 泰科 | 当前型号 | 当前型号 |
2-747709-0 泰科 | 完全替代 | 2-5747709-0和2-747709-0的区别 |
1-338316-2 泰科 | 功能相似 | 2-5747709-0和1-338316-2的区别 |
