2132739-1

Conn High Density RCP 48Signal/24Ground POS 1.9mm Press Fit RA Thru-Hole Tube

IMP100S,R,RA4P6C,UG,39

得捷:
CONN RCPT IMPACT 72POS EDGE MNT

艾睿:

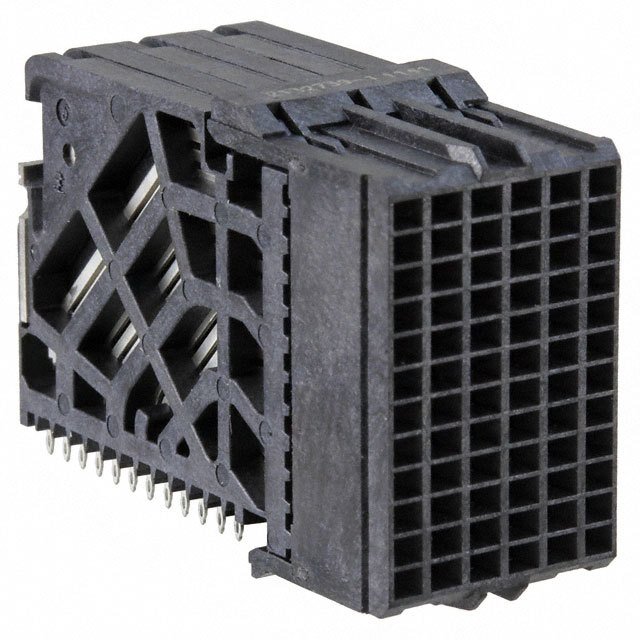

TE Connectivity&s;s high density 2132739-1 backplane connector allows multiple different printed circuit boards to communicate with each other via a computer bus, enabling you to form a complete computer system. This RCP connector&s;s 48signal / 24ground contacts that are made out of copper-nickel-silicon and plated with gold over nickel. It has a right angle body orientation. It has a receptacle type gender. It has a maximum voltage rating of 120 VDC|120VAC. This is a 15-row connector. This device has a maximum current rating of 0.75 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the press fit termination method. 2132739-1 is housed in black liquid crystal polymer. This backplane connector has an operating temperature of -55 to 85 °C.

安富利:
Conn High Density RCP 90 POS Press RA Thru-Hole Tube

Verical:
Conn High Density RCP 48Signal/24Ground POS 1.9mm Press Fit RA Thru-Hole Box/Tube

Newark:
# AMP - TE CONNECTIVITY  2132739-1  IMP100S,R,RA4P6C,UG,39 New

MASTER:
IMPACT, 4 PAIR, DAUGHTERCARD 6 COLUMN, UNGUIDED, SIGNAL MODULE, 0.39 EYELET

Online Components:
IMP100S,R,RA4P6C,UG,39

Electro Sonic:
IMP100S,R,RA4P6C,UG,39
