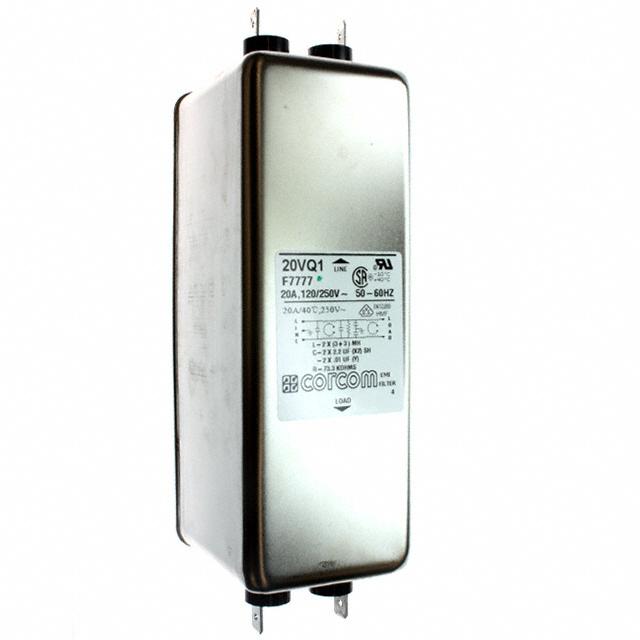

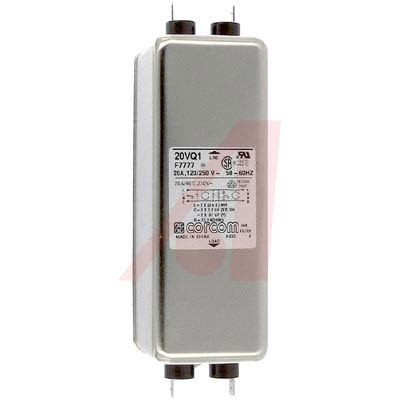

CORCOM - TE CONNECTIVITY 20VQ1 Power Line Filter, Installation, 4.4μF, 250VAC, 20A, EMI, RFI, Quick Connect, 6mH
Highest Performance RFI Filters for Switching Power Supplies
艾睿:
Power Line Filter 50Hz/60Hz 20A 250VAC Quick Connect Flange Mount
Allied Electronics:
Filter, RFI, Power Line, Control to 10KHz, 20 Amp
安富利:
Power Line Filter 50Hz/60Hz 20A 250VAC Quick Connect Flange Mount
Chip1Stop:
Power Line Filter 50Hz/60Hz 20A 250VAC Quick Connect Flange Mount
Verical:
Power Line Filter 50Hz/60Hz 20A 250VAC Quick Connect Flange Mount
MASTER:
Power Line Filter 50Hz/60Hz 20A 250VAC Quick Connect Flange Mount
Powell:
Power Line Filters 20A 1/4" QUIK CONN
Electro Sonic:
Power Line Filter 50Hz/60Hz 20A 250VAC Quick Connect Flange Mount
频率 60.0 Hz
额定电压DC 250 V
额定电压AC 250 V
工作电压 250 VAC
额定电流 20 A
电容 4.4 µF
电感 6 mH
额定电流Max 20 A
工作温度Max 40 ℃
工作温度Min -10 ℃
额定电压Max 250 VAC
额定电压 250 VAC
安装方式 Flange
封装 168
长度 168.1 mm
宽度 52.6 mm
高度 57.9 mm
封装 168
工作温度 -10℃ ~ 40℃
产品生命周期 Active
包装方式 Bulk
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8548900100
