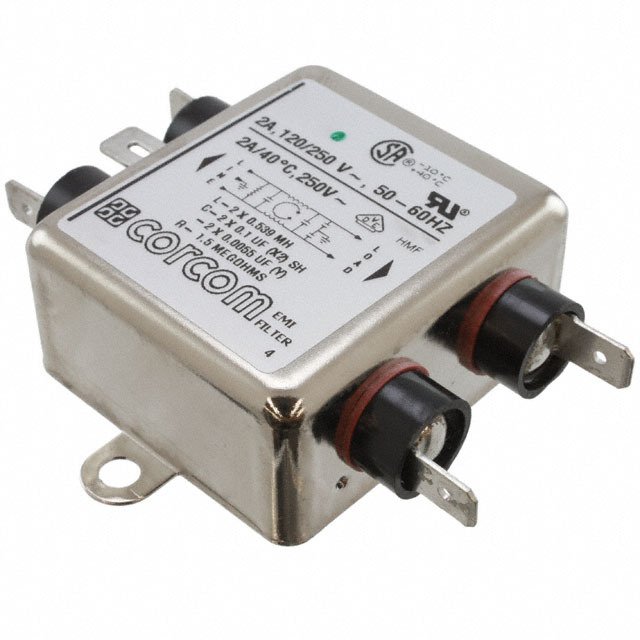

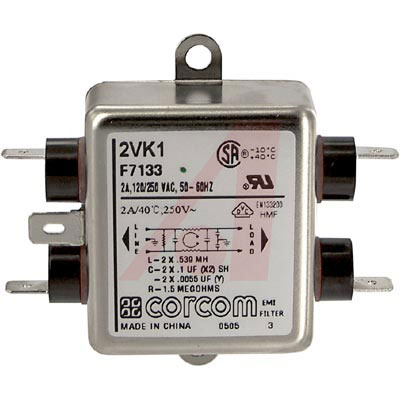

TE CONNECTIVITY / CORCOM 2VK1 射频滤波器, 标准型
Single Phase EMC/EMI 线路 2 A 250VAC 50/60Hz 单级 快速连接
e络盟:
射频滤波器, 标准型
艾睿:
Power Line Filter General Purpose RFI 50Hz/60Hz 2A 250VAC Quick Connect Flange Mount
Allied Electronics:
Filter; Gen. Purp.; RFI Line; 1 Ph; Op-V 250VAC; Curr 2A; Flange Mnt; Corcom/K Series
安富利:
Power Line Filter 50Hz/60Hz 2A 250VAC Quick Connect Flange Mount
Chip1Stop:
Power Line Filter General Purpose RFI 50Hz/60Hz 2A 250VAC Quick Connect Flange Mount
Verical:
Power Line Filter General Purpose RFI 50Hz/60Hz 2A 250VAC Quick Connect Flange Mount
MASTER:
Power Line Filter General Purpose RFI 50Hz/60Hz 2A 250VAC Quick Connect Flange Mount
Powell:
Power Line Filters 2A 1/4" QUIK CONN FLANGE MOUNT
Electro Sonic:
Power Line Filter General Purpose RFI 50Hz/60Hz 2A 250VAC Quick Connect Flange Mount
频率 60.0 Hz
额定电压DC 250 V
额定电压AC 250 V
工作电压 250 VAC
额定电流 2 A
电容 0.203 µF
电感 539 µH
额定电流Max 2 A
工作温度Max 40 ℃
工作温度Min -10 ℃
额定电压Max 250 VAC
额定电压 250 VAC
安装方式 Flange
长度 78.7 mm
宽度 71.4 mm
高度 23.1 mm
工作温度 -10℃ ~ 40℃
产品生命周期 Active
包装方式 Bulk
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8548900100
