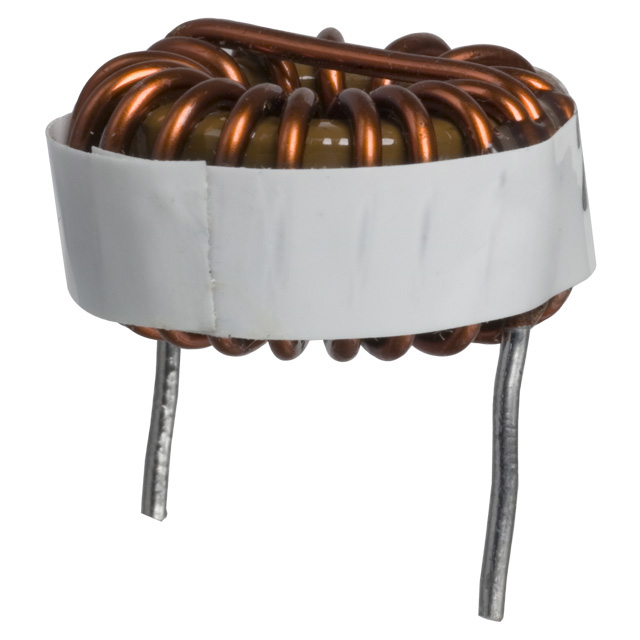

BOURNS JW MILLER 2121-H-RC 螺旋管电感, 560uH, 15%容差

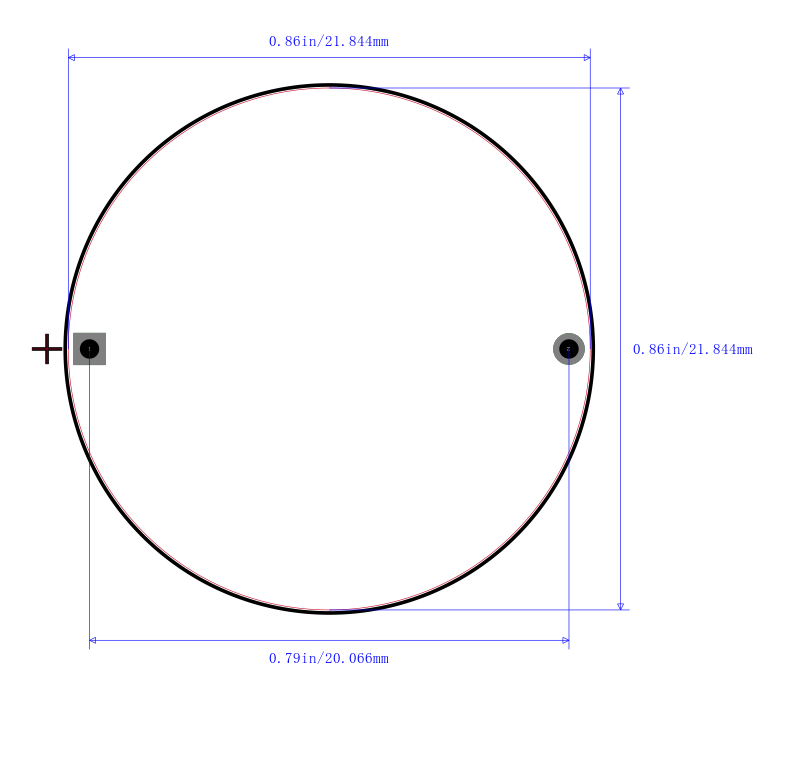

This high current leaded inductor from Bourns resists changes in electric current passing through it. This part has a pitch of 20.07 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its test frequency is 1K Hz. This product is 11.43 mm tall with a diameter of 21.84 mm. This leaded inductor has a maximum DC current of 1.5 A with a maximum resistance of 300m Ohm. It has an inductance of 560u/341.5uRated H. This device is made with toroid technology. It has a tolerance of 15%.
额定电流 1.5 A
容差 ±15 %
电感 560 µH
屏蔽 No
电感公差 ±15 %
测试频率 1 kHz
电阻DC） ≤300 mΩ
工作温度Max 105 ℃
工作温度Min -55 ℃
电阻DC Max 0.3 Ω

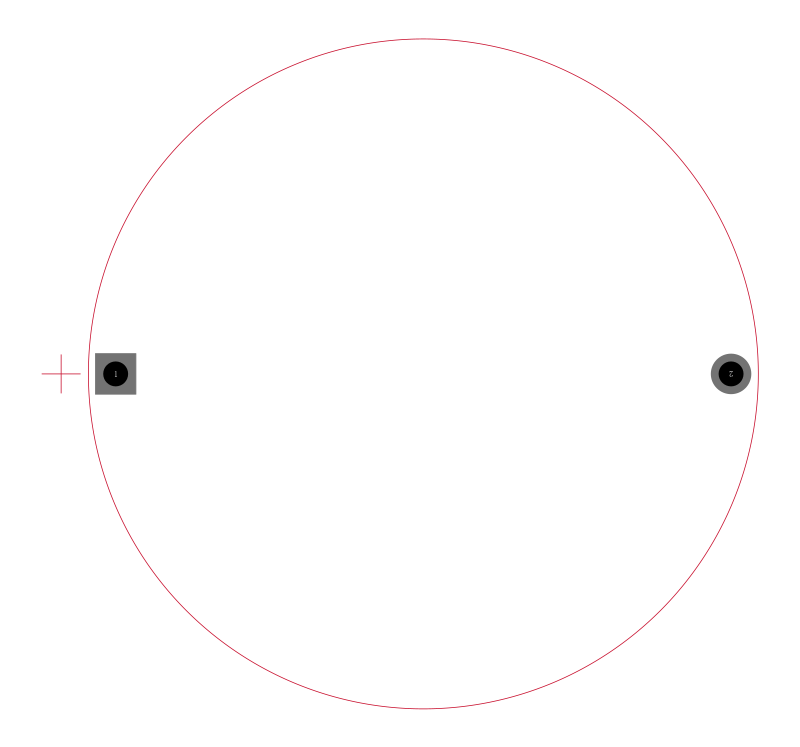

安装方式 Through Hole
引脚数 2
封装 Radial
高度 11.43 mm
直径 21.8 mm
封装 Radial
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2121-H-RC Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
2121-H 伯恩斯 | 类似代替 | 2121-H-RC和2121-H的区别 |
