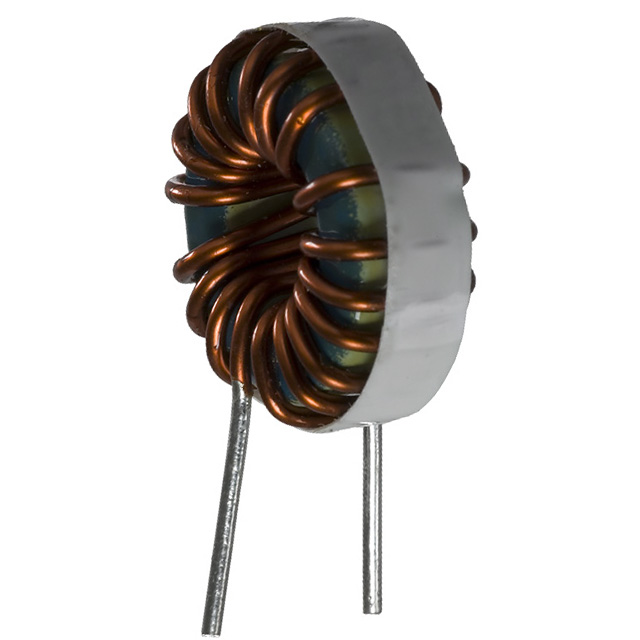

Inductor High Current Toroid 56uH/34.1uH 15% 1kHz 6.4A 26mOhm DCR RDL
This high current leaded inductor from Bourns is available for both power applications and RF applications. This part has a pitch of 11.43 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. It has an inductance of 56u/34.1uRated H. It has a tolerance of 15%. This leaded inductor has a maximum DC current of 6.4 A with a maximum resistance of 26m Ohm. This product is 13.97 mm deep. Its test frequency is 1K Hz. This device is made with toroid technology.
额定电流 6.4 A
容差 ±15 %
电感 56 µH
屏蔽 No
电感公差 ±15 %
测试频率 1 kHz
电阻DC） ≤26 mΩ
工作温度Max 105 ℃
工作温度Min -55 ℃
电阻DC Max 0.026 Ω
安装方式 Through Hole
引脚数 2
封装 Radial
宽度 13.97 mm
高度 14.0 mm
直径 24.1 mm
封装 Radial
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2210-V-RC Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
2210-V 伯恩斯 | 功能相似 | 2210-V-RC和2210-V的区别 |
