2323-V-RC

Inductor High Current Toroid 820uH/500.9uH 15% 1kHz 2.6A 270mOhm DCR RDL

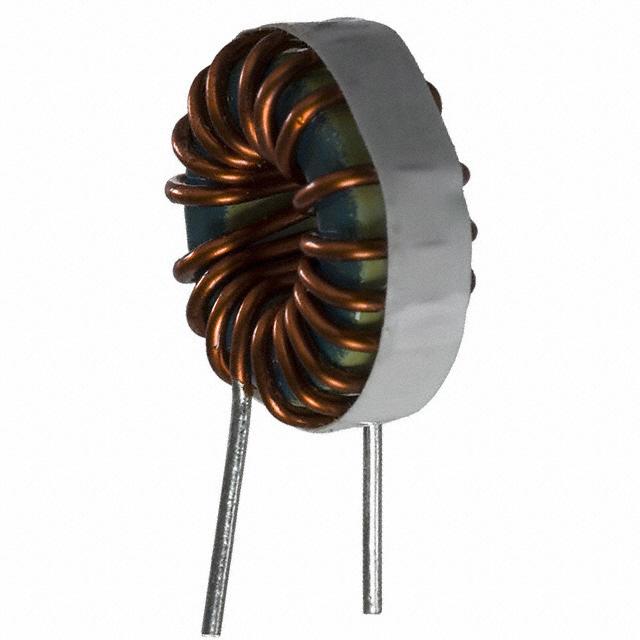

This high current leaded inductor from Bourns is constructed on a core with concentric leads on opposite ends of the core. This part has a pitch of 13.46 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 16.51 mm deep. It has an inductance of 820u/500.9uRated H. This leaded inductor has a maximum DC current of 2.6 A with a maximum resistance of 270m Ohm. Its test frequency is 1K Hz. It has a tolerance of 15%. This device is made with toroid technology.
