2209-H-RC

Inductor High Current Toroid 47uH/29.3uH 15% 1kHz 6.7A 24mOhm DCR RDL

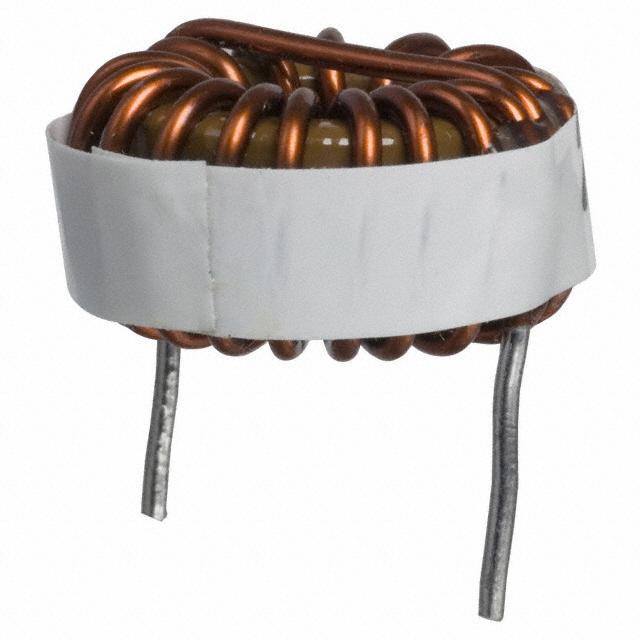

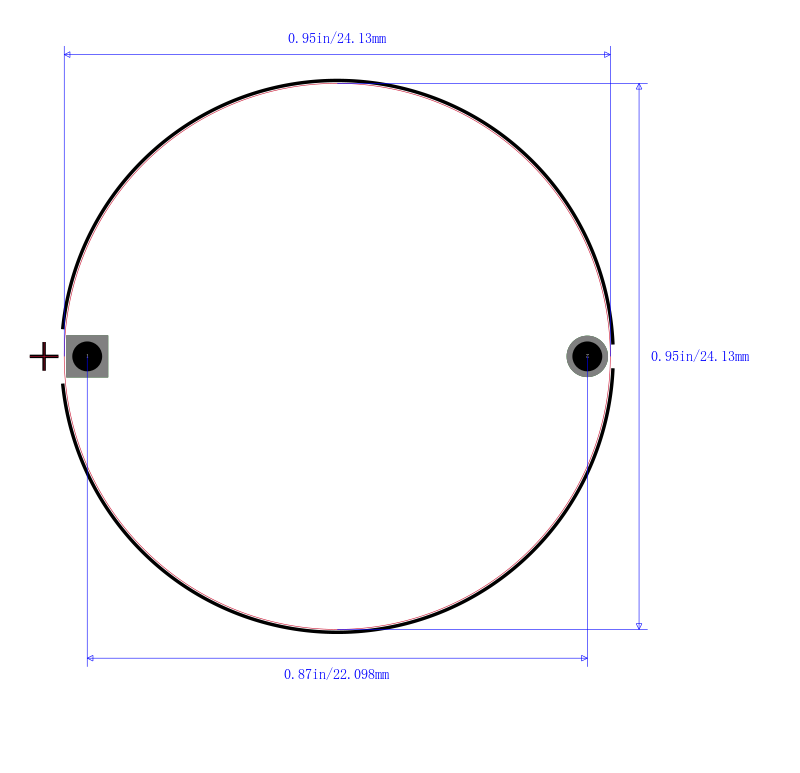

This high current leaded inductor from Bourns is constructed on a core with concentric leads on opposite ends of the core. This part has a pitch of 22.1 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 105 °C. It has a tolerance of 15%. This product is 13.97 mm tall with a diameter of 24.13 mm. It has an inductance of 47u/29.3uRated H. This device is made with toroid technology. Its test frequency is 1K Hz. This leaded inductor has a maximum DC current of 6.7 A with a maximum resistance of 24m Ohm.
