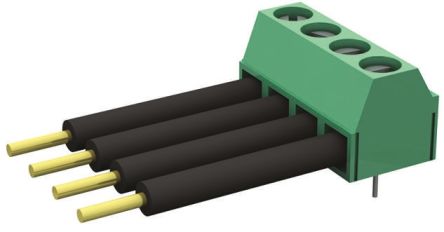

3.5 mm Pitch FCI Terminal Block, Fixed Horizontal Wire Inlet
Robust and solid design
Rated at 10A
End-to-end stackable
Durability: 200 cycles
AWG 16-24
### 注
Wires shown in image not supplied with connector.
### 认可
UL recognised for US and Canada
### 3.5mm Pitch FCI Terminal Blocks
FCIs PCB signal 3.5 mm pitch Terminal Blocks. Featuring proven high performance Cage clamp technology that ensures a perfect connection time after time. These 3.5mm pitch signal terminal blocks are suitable for for a wide variety of applications including: industrial, instrumentation and communication systems.
触点数 9
线规 16AWG ~ 24AWG
触点电镀 Tin
额定电流 10 A
排数 1
电路数 9
针脚数 9
额定电流Max 10A/触头
工作温度Max 115 ℃
工作温度Min -40 ℃
额定电压Max 300 V
额定电压 300 V
工作电压Max 300 V
安装方式 Through Hole
高度 8.5 mm
外壳颜色 Green
颜色 Green
触点材质 Brass
材质 Nylon
工作温度 -40℃ ~ 115℃
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
