20J225

20J225图片1
20J225图片2
20J225图片3
20J225图片4
20J225图片5

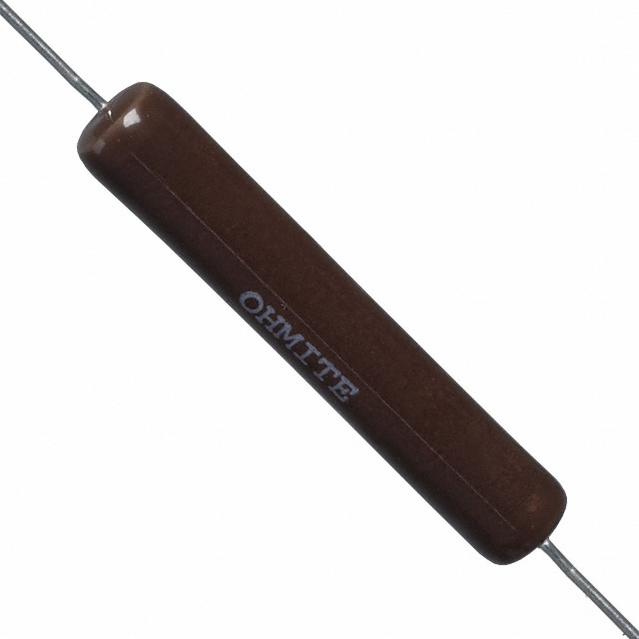

20J225图片6
20J225概述

线绕电阻器 - 透孔 10watt 225ohm 5%

**Features

**

* Rugged Vitreous Enamel Coating Withstands High Humidity and Temperature Cycling

* Durable Construction, Recommended for Industrial Applications Where Reliability Is Paramount

* All-Welded Construction

* Flame-Resistant Vitreous Enamel Coating

* 5% Tolerance


立创商城:
绕线电阻 225Ω ±5% 10W


贸泽:
线绕电阻器 - 透孔 10watt 225ohm 5%


艾睿:
Res Wirewound 225 Ohm 5% 10W ±30ppm/°C Vitreous Enamel AXL


Allied Electronics:
10W 225 OHMS VITREOUS 5%


Chip1Stop:
Res Wirewound 225 Ohm 5% 10W 30ppm/ C Conformal AXL


Verical:
Res Wirewound 225 Ohm 5% 10W ±30ppm/C Vitreous Enamel AXL


MASTER:
Res Wirewound 225 Ohm 5% 10W ±30ppm/°C Vitreous Enamel AXL


Online Components:
Res Wirewound 225 Ohm 5% 10W ±30ppm/°C Vitreous Enamel AXL


Electro Sonic:
Res Wirewound 225 Ohm 5% 10W ±30ppm/°C Vitreous Enamel AXL


20J225中文资料参数规格
技术参数

容差 5 %

额定功率 10 W

产品系列 20

电阻 225 Ω

阻值偏差 ±5 %

工作温度Max 350 ℃

工作温度Min 25 ℃

封装参数

安装方式 Through Hole

封装 Axial

外形尺寸

长度 46.8 mm

直径 Φ10.00mm

脚长度 38.1 mm

封装 Axial

物理参数

工作温度 25℃ ~ 350℃

温度系数 ±30 ppm/℃

其他

包装方式 Bulk

最小包装 250

符合标准

RoHS标准 Non-Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8533210080

数据手册

20J225引脚图与封装图
20J225引脚图
20J225封装图
20J225封装焊盘图
在线购买20J225
型号: 20J225
制造商: Ohmite
描述:线绕电阻器 - 透孔 10watt 225ohm 5%
