2-103673-3

AMPMODU 24 位置 通孔 单排 直角 0.100 英寸 针座

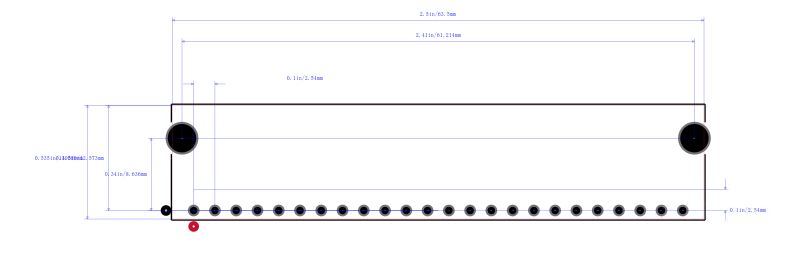

Think of "s shrouded header connector the next time you"re concerned about accidentally shorting out pins on your printed circuit. This HDR connector"s 24 contacts that are made out of brass and plated with gold over nickel. Its pitch is 2.54 mm. It has a right angle body orientation. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -65 to 105 °C. 2-103673-3 is housed in black thermoplastic. This product is 63.5 mm long, 6.99 mm tall and 13.59 mm deep. It uses the solder termination method.
