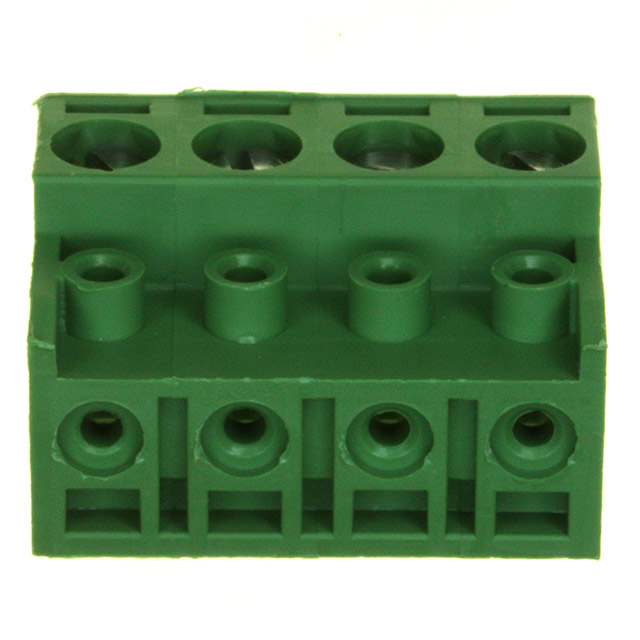

282830-4

4 位置 5.00mm 直角 垂直 接线端子-绿色

4 针位端子块 无罩接头的插头 0.197"（5.00mm） - 90° 自由悬挂

得捷:
TERM BLOCK PLUG 4POS 90DEG 5MM

艾睿:
Keep your connections strong with this eurostyle block 282830-4 PCB terminal block from TE Connectivity utilizing clamps and screws. This F connector&s;s 4 contacts that are made out of phosphor bronze/brass and plated with tin/nickel. Its pitch is 5 mm. It has a straight/right angle body orientation. It has a female type gender. It has a maximum voltage rating of 300 VAC. This is a 1-row connector. 282830-4 is housed in polyamide 6/6. This device has a maximum current rating of 12 A/contact. Its wire is 12-30 AWG. It uses the screw termination method. This quick disconnect terminal has an operating temperature of -40 to 105 °C. This product is 20 mm long, 11.5 mm tall and 13.9 mm deep.

安富利:
Conn Terminal Block F 4 POS 5mm Screw Straight/Right Angle Cable Mount 12A/Contact

Chip1Stop:
Conn Terminal Block F 4 POS 5mm Screw Straight/Right Angle Cable Mount 12A/Contact

Verical:
Conn Eurostyle Block F 4 POS 5mm Screw Straight/Right Angle Cable Mount 12A/Contact

MASTER:
TERMINAL BLOCK PLUG 90/180 DEGREE, STRIGHT SIDE STACKABLE, 5.0mm PITCH

Powell:
Terminal Block Connectors

Online Components:
TERMI-BLOK PLUG 90&180 4P. 5

Electro Sonic:
TERMI-BLOK PLUG 90&180 4P. 5
