284510-5

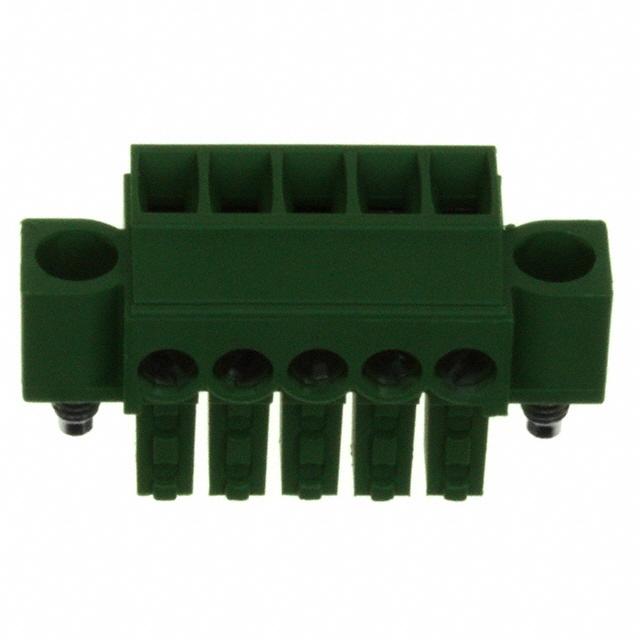

284510-5图片1

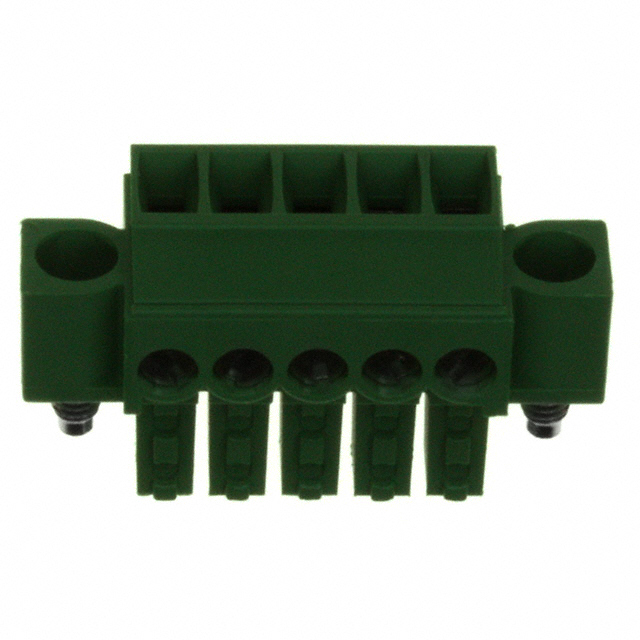

284510-5图片2
284510-5图片3
284510-5图片4
284510-5图片5
284510-5图片6
284510-5图片7
284510-5概述

Conn Eurostyle Block PL 5POS 3.5mm Solder RA Thru-Hole 11A/Contact

5P TERMI-BLOK PLUG CON VITI

Product Highlights

Connector

Connector Type = Plug

Not Shrouded

Housing Color = Green

Not Side Stackable


得捷:
TERM BLOCK PLUG 5POS STR 3.5MM


艾睿:
This eurostyle block 284510-5 PCB terminal block manufactured from TE Connectivity will bridge different sections of wires together. This PL connector&s;s 5 contacts that are made out of phosphor bronze/brass and plated with tin/nickel. It has a maximum voltage rating of 300 VAC. This is a 1-row connector. Its pitch is 3.5 mm. It has a plug type gender. It has a right angle body orientation. This device has a maximum current rating of 11 A/contact. 284510-5 is housed in polyamide 6/6. It uses the solder termination method. This quick disconnect terminal has an operating temperature of -40 to 105 °C. This product is 23 mm long, 11.1 mm tall and 15.5 mm deep. Its wire is 14-30 AWG.


Chip1Stop:
Conn Eurostyle Block PL 5 POS 3.5mm Solder RA Thru-Hole 11A/Contact


Verical:
Conn Eurostyle Block PL 5 POS 3.5mm Solder RA Thru-Hole 11A/Contact


Powell:
Terminal Block Connectors


Online Components:
Conn Eurostyle Block PL 5 POS 3.5mm Solder RA Thru-Hole 11A/Contact


Electro Sonic:
5P TERMI-BLOK PLUG CON VITI


284510-5中文资料参数规格
技术参数

触点数 5

线规 14AWG ~ 30AWG

触点电镀 Tin

排数 1

电路数 5

易燃性等级 UL 94 V-0

针脚数 5

安装角度 180 °

额定电流Max 11A/触头

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 300 VAC

工作电压Max 300 VAC

封装参数

安装方式 Through Hole

引脚间距 3.50 mm

外形尺寸

长度 23 mm

宽度 15.5 mm

高度 11.1 mm

引脚间距 3.50 mm

物理参数

外壳颜色 Green

颜色 Green

触点材质 Phosphor Bronze

工作温度 -40℃ ~ 105℃

外壳材质 Nylon 6/6

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

在线购买284510-5
型号: 284510-5
描述:Conn Eurostyle Block PL 5POS 3.5mm Solder RA Thru-Hole 11A/Contact
