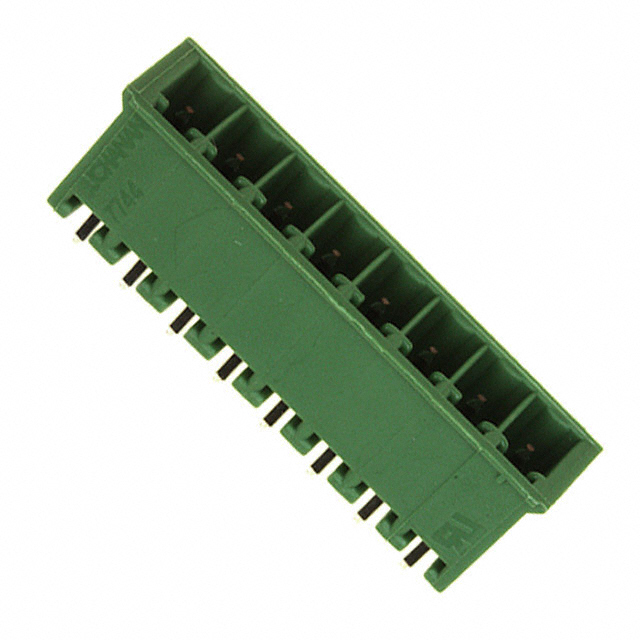

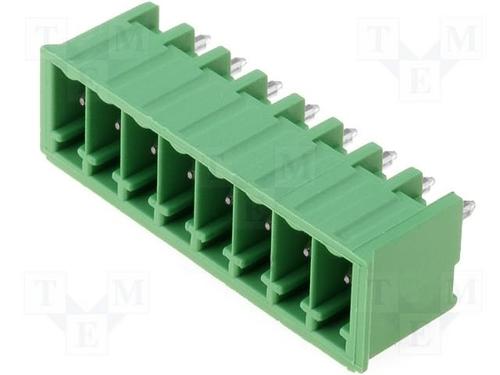

284514-8

TE Connectivity 3.5mm TERMI-BLOK Vertical Closed End Header Terminal BlocksTERMI-BLOK 3.5mm vertical mount closed end PCB terminal block headers with polarization keying slots. These TERMI-BLOK 3.5mm PCB terminal block headers are made from green polyamide 6.6 GF### 标准UL 94V-0### TE Connectivity TERMI-BLOK 3.5mm 两件式端子块

3.5mm TERMI-BLOK 垂直闭端管座端子块

TERMI-BLOK 3.5mm 垂直安装闭端印刷电路板端子块管座，带极化键接插槽。这些 TERMI-BLOK 3.5mm 印刷电路板端子块管座由绿色聚酰胺 6.6 GF 制成

### 标准

UL 94V-0

### TE Connectivity TERMI-BLOK 3.5mm 两件式端子块

得捷:
TERM BLOCK HDR 8POS VERT 3.5MM

欧时:
### TE Connectivity 3.5mm TERMI-BLOK Vertical Closed End Header Terminal BlocksTERMI-BLOK 3.5mm vertical mount closed end PCB terminal block headers with polarization keying slots. These TERMI-BLOK 3.5mm PCB terminal block headers are made from green polyamide 6.6 GF### 标准UL 94V-0### TE Connectivity TERMI-BLOK 3.5mm 两件式端子块

e络盟:
端子块, 针座, 3.5 mm, 8 路, 11 A, 300 V, 通孔直角

艾睿:
Thanks to TE Connectivity&s;s shrouded 284514-8 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector&s;s 8 contacts that are made out of phosphor bronze and plated with tin. Its pitch is 3.5 mm. It has a header type gender. It has a straight body orientation. It has a maximum voltage rating of 300 VAC. This is a 1-row connector. This device has a maximum current rating of 11 A/contact. This product is 30 mm long, 9.2 mm tall and 7.2 mm deep. It uses the solder termination method. 284514-8 is housed in green polyamide 6/6.

安富利:
Conn Shrouded Header HDR 8 POS 3.5mm Solder ST Thru-Hole

Chip1Stop:
Conn Shrouded Header HDR 8 POS 3.5mm Solder ST Thru-Hole

TME:
Pluggable terminal block; socket; male; 3.5mm; straight; ways:8

Verical:
Conn Shrouded Header 4 Sides HDR 8 POS 3.5mm Solder ST Thru-Hole

MASTER:
TERMINAL BLOCK, HEADER ASSEMBLY STRAIGHT, CLOSED ENDS 3.5mm PITCH

Powell:
Terminal Block Connectors

Online Components:
8 POS TERMI-BLOK HDR DIR. POL.

Electro Sonic:
8 POS TERMI-BLOK HDR DIR. POL.

Win Source:
TERM BLOCK HDR 8POS VERT 3.5MM / 8 Position Terminal Block Header, Male Pins, Shrouded 4 Side 0.138" 3.50mm Vertical Through Hole
