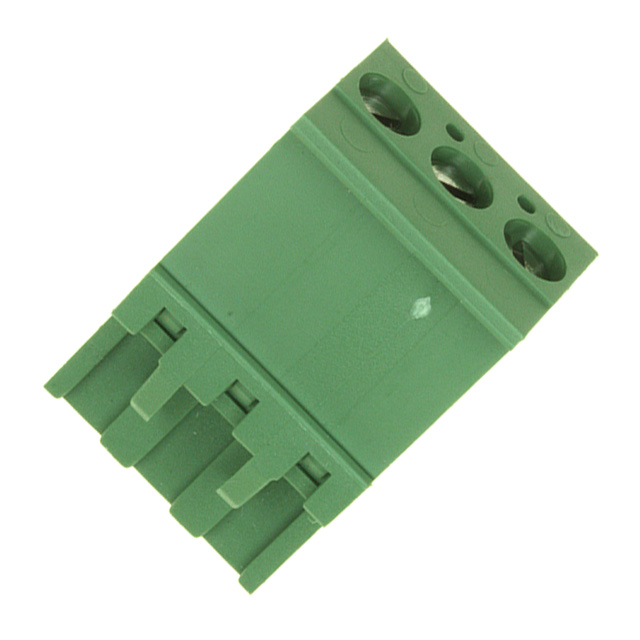

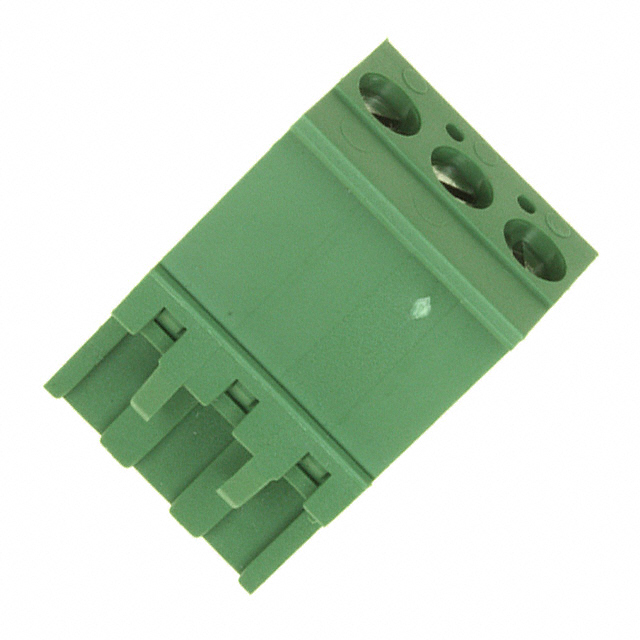

284041-3

Conn Terminal Block F 3POS 5.08mm Screw ST Cable Mount 15A/Contact

TERMINAL BLOCK VERTICAL PLUG S

Product Highlights

Connector

Connector Type = Plug left-hand

Housing Color = Green

Side Stackable

Without Screw Flange

得捷:
TERM BLOCK PLUG 3POS 5.08MM

艾睿:
Say goodbye to wires becoming undone by using this eurostyle block 284041-3 PCB terminal block developed by TE Connectivity. This F connector&s;s 3 contacts that are made out of phosphor bronze/brass and plated with tin/nickel. This is a 1-row connector. Its pitch is 5.08 mm. It has a female type gender. It has a maximum voltage rating of 300 VAC. It has a straight body orientation. This device has a maximum current rating of 15 A/contact. 284041-3 is housed in polyamide 6/6. It uses the screw termination method. This product is 15.24 mm long, 25 mm tall and 12.5 mm deep. Its wire is 12-30 AWG.

安富利:
Conn Terminal Block F 3 POS 5.08mm Screw ST Cable Mount 15A/Contact

富昌:
Terminal Block Euro Style

Verical:
Conn Eurostyle Block F 3 POS 5.08mm Screw ST Cable Mount 15A/Contact

MASTER:
TERMINAL BLOCK, VERTICAL PLUG STACKING, LEFT HAND 5.08mm PITCH

Powell:
Terminal Block Connectors

Online Components:
TERMINAL BLOCK VERTICAL PLUG S

Electro Sonic:
TERMINAL BLOCK VERTICAL PLUG S
