可插拔接线端子 TERMI-BLOK PIN HEAD 180 5P. 5
5 针位端子块 接头，公引脚，无罩 0.197"（5.00mm） 垂直 - 通孔
得捷:
TERM BLOCK HDR 5POS VERT 5MM
贸泽:
可插拔接线端子 TERMI-BLOK PIN HEAD 180 5P. 5
艾睿:

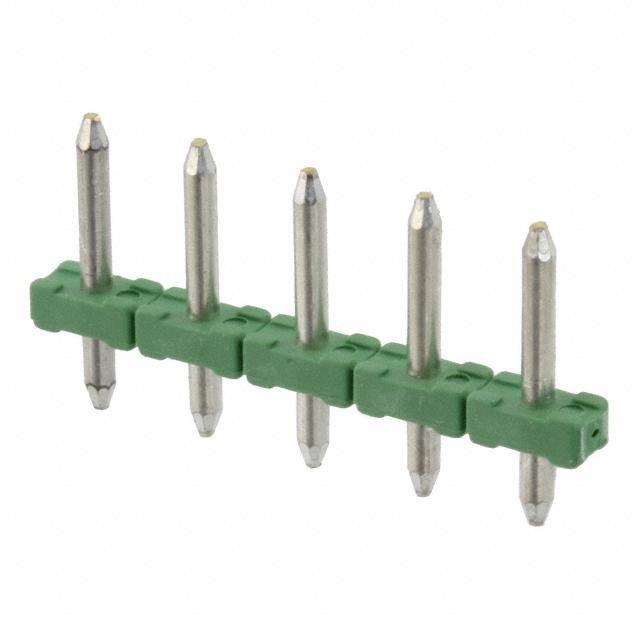

Use this unshrouded 282832-5 connector from TE Connectivity when board-to-board interconnects is required. This HDR connector&s;s 5 contacts that are made out of brass and plated with tin over nickel. This is a 1-row connector. It has a maximum voltage rating of 300 VAC. Its pitch is 5 mm. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 12 A/contact. 282832-5 is housed in green polyamide 6/6. It uses the solder termination method. This product is 25 mm long, 9 mm tall and 2.8 mm deep. This connector has an operating temperature of -40 to 105 °C.
安富利:
Conn Unshrouded Header HDR 5 POS 5mm Solder ST Thru-Hole
Verical:
Conn Unshrouded Header HDR 5 POS 5mm Solder ST Thru-Hole Box
Powell:
Terminal Block Connectors
Online Components:
TERMI-BLOK PIN HEAD 180 5P. 5
Electro Sonic:
TERMI-BLOK PIN HEAD 180 5P. 5
