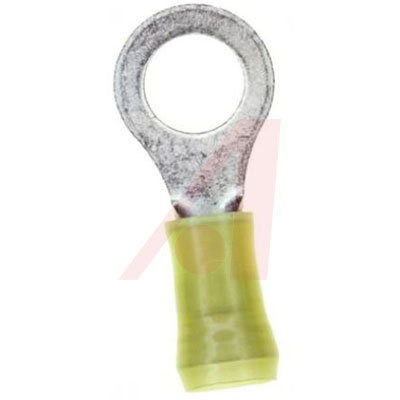

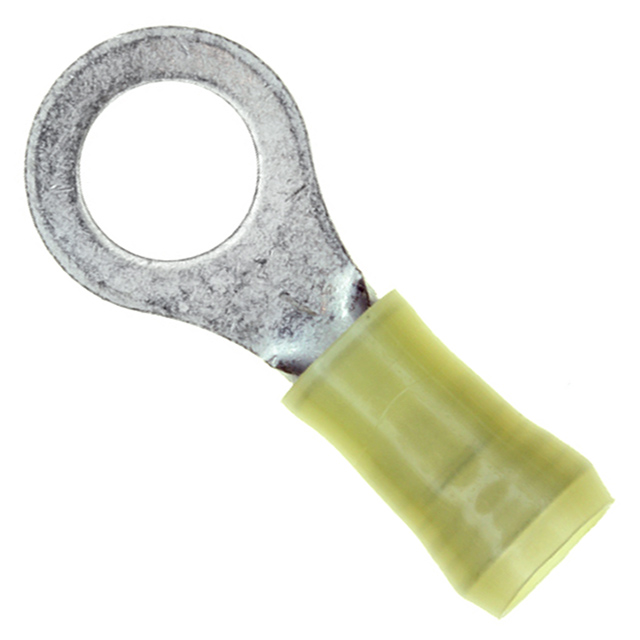

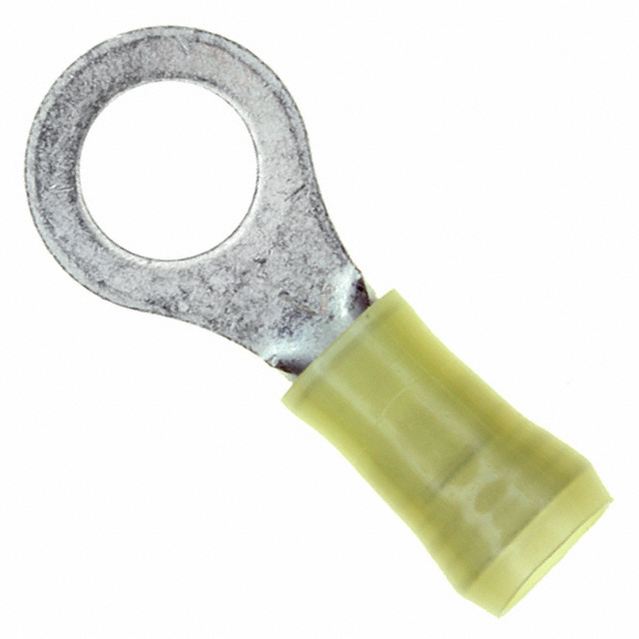

PIDG 12-10 AWG 直 封闭桶 环形舌片 端子
- 环形 5/16 接线柱 圆形 10-12 AWG 压接
得捷:
CONN RING CIRC 10-12AWG #5/16
立创商城:
2-35111-1
e络盟:
端子, 环形舌, 5/16英寸, 黄色
艾睿:
The ring tongue terminal 2-35111-1 wire terminal from TE Connectivity works by making a solid shielded connection between two of your terminals. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its wire is 10-12 AWG. This product is 33.57 mm long and 13.48 mm.
Allied Electronics:
Terminal; Ring Tongue; PIDG; 12-10 AWG; Straight; Closed Barrel
安富利:
Ring Tongue Terminal 10-12AWG 33.57mm 13.48mm Tin T/R
Verical:
Ring Tongue Terminal 10-12AWG Copper Yellow 33.57mm Tin T/R
Newark:
Ring Tongue Terminal, M8, 5/16", 10 AWG, Nylon Polyamide
MASTER:
WIRE TERMINAL P.I.D.G RING TONGUE WIRE SIZE: 12-10
Powell:
Ring and Spade Tongue Terminals
Online Components:
PIDG 12-10 R 5/16; TAPE
ICbanQ:
CONN RING 10-12 AWG #5/16 PIDG
Electro Sonic:
PIDG 12-10 R 5/16; TAPE
极性 Female
线规 10AWG ~ 12AWG
触点电镀 Tin
额定电压DC 300 V
方向 Straight
端接类型 Ring Lug, Ring
额定电压Max 300 VAC
额定电压 300 VAC
封装 -
长度 33.58 mm
宽度 13.5 mm
封装 -
厚度 1.02 mm
颜色 Yellow
触点材质 Copper
材质 Copper
绝缘材质 Nylon
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536904000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2-35111-1 TE Connectivity 泰科 | 当前型号 | 当前型号 |
8-35111-1 泰科 | 完全替代 | 2-35111-1和8-35111-1的区别 |
35111 泰科 | 类似代替 | 2-35111-1和35111的区别 |
0190730201 莫仕 | 类似代替 | 2-35111-1和0190730201的区别 |
