213662-1

213662-1图片1
213662-1图片2
213662-1图片3
213662-1图片4
213662-1图片5
213662-1图片6
213662-1图片7
213662-1图片8
213662-1图片9
213662-1图片10
213662-1图片11
213662-1概述

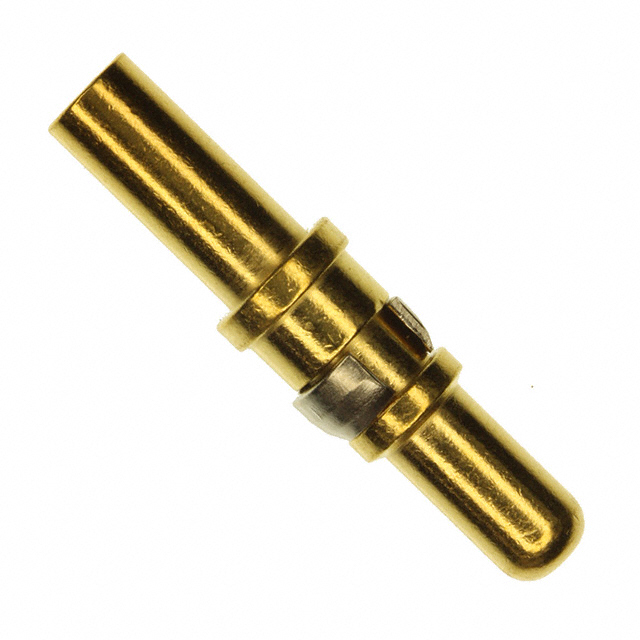

Type I PCB Conn Contact, Male, Crimp, Gold over Nickel Plating 14 to 12AWG

The Contact Extraction Tool features a handle and sleeve release the contact locking lance, and a push rod button to eject the contact.


得捷:
CONN PIN 12-14AWG GOLD CRIMP


贸泽:
Power to the Board PIN 14-12 AWG 30 AU SIZE 8


艾睿:
This 213662-1 connector contact from TE Connectivity is designed to perform within the specified physical and mechanical loads to provide a solid connection. It has a straight body orientation. This has a Connector Circular connector. It uses the crimp termination method. This product is 23.11 mm long.


Allied Electronics:
Type I PCB Conn Contact, Male, Crimp, Gold over Nickel Plating 14 to 12 AWG


安富利:
Contact PIN Crimp ST Cable Mount Loose Piece


Verical:
Contact PIN 8 Size Crimp ST Cable Mount Bag


Newark:
# AMP - TE CONNECTIVITY  213662-1  SIZE 8 PIN CONT ASSY,12-14 AWG New


MASTER:
PIN CONTACT ASSEMBLY, POWER VIII, METRIMATE


Powell:
Multimate


Online Components:
SIZE 8 PIN CONT ASSY,12-14 AWG


Electro Sonic:
SIZE 8 PIN CONT ASSY,12-14 AWG


213662-1中文资料参数规格
技术参数

极性 Male

线规 12AWG ~ 14AWG

触点电镀 Gold

额定电流 45 A

物理参数

触点材质 Copper Alloy

材质 Brass

其他

产品生命周期 Active

包装方式 Bag

制造应用 Power

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8538908080

数据手册

在线购买213662-1
型号: 213662-1
描述:Type I PCB Conn Contact, Male, Crimp, Gold over Nickel Plating 14 to 12AWG
