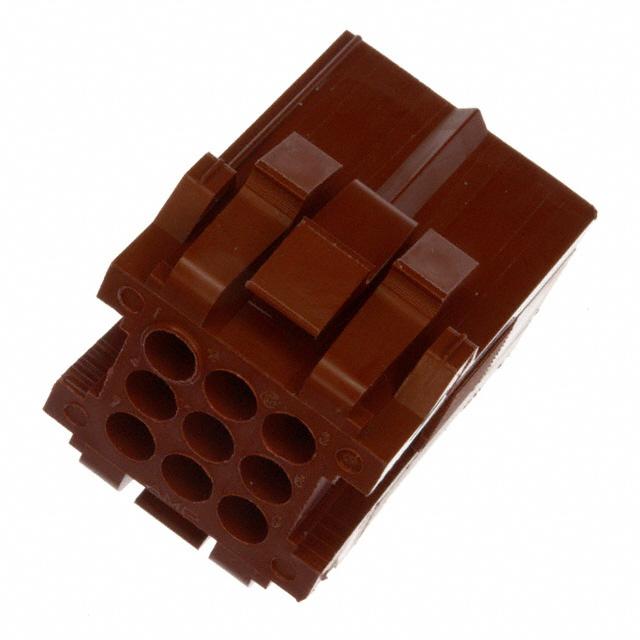

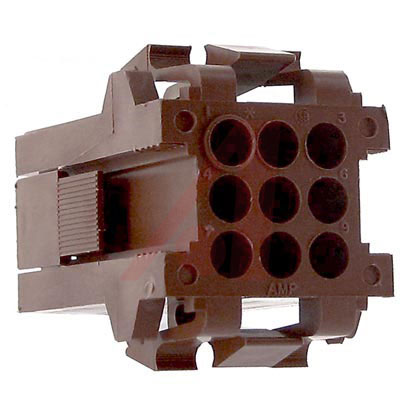

TE Connectivity Metrimate 方形栅格连接器插座外壳适用于标准压接触点 III+ 类型(单独提供;参阅库存号 160-0932) Voltage rating | 440V in compliance with IEC; 380V a.c. in compliance with VDE 110 group B ---|--- Pitch | 5.0mm ### TE Connectivity Metrimate 系列5mm 节距连接器 适合面板或自由安装 比 Mate-N-Lok 系列引脚更高
Metrimate 方形栅格插座外壳
适用于标准压接触点 III+ 类型(单独提供;参阅库存号 160-0932)
Voltage rating | 440V in compliance with IEC;
380V a.c. in compliance with VDE 110 group B
---|---
Pitch | 5.0mm
得捷:
CONN RCPT HSG 9POS 5.00MM
欧时:
### TE Connectivity Metrimate 方形栅格连接器插座外壳适用于标准压接触点 III+ 类型(单独提供;参阅库存号 160-0932) Voltage rating | 440V in compliance with IEC; 380V a.c. in compliance with VDE 110 group B ---|--- Pitch | 5.0mm ### TE Connectivity Metrimate 系列5mm 节距连接器 适合面板或自由安装 比 Mate-N-Lok 系列引脚更高
立创商城:
207440-1
e络盟:
矩形电源连接器, 9 触点, Metrimate系列, 电缆安装, 压接, 5 mm, 插座
艾睿:
Use this 207440-1 discrete wire housing from TE Connectivity for a durable connection between discrete wires. This RCP connector has 9 RCP contacts. It has a receptacle type gender. It has a straight body orientation. Its pitch is 5 mm. This is a 3-row connector. It has a maximum voltage rating of 600 VAC. This device has a maximum current rating of 14 A/contact. 207440-1 is housed in red thermoplastic. This product is 23.8 mm long and 33.02 mm. This rectangle connector has an operating temperature of -55 to 130 °C.
Allied Electronics:
Connector; Soft Shell; Receptacle; 9; 14 A Max.; 600; Thermoplastic; Red
Jameco:
Connector Housing Receptacle 9 Position 5mm Straight
安富利:
Conn Housing RCP 9 POS 5mm ST
Chip1Stop:
Conn Housing RCP 9 POS 5mm ST
Verical:
Conn Rectangular PIN 9 POS 5mm Crimp ST Cable Mount Package
Newark:
# AMP - TE CONNECTIVITY 207440-1 Connector Housing, Metrimate Series, Receptacle, 9 Positions, 5 mm
Powell:
Metrimate Connectors
Online Components:
9 POS SQ GRID METRIMATE-RCPT
ICbanQ:
Rectangular Connectors 9P RECEP .197 SP
Electro Sonic:
9 POS SQ GRID METRIMATE-RCPT
Win Source:
CONN RCPT HSG 9POS 5MM / 9 Rectangular Connectors - Housings Receptacle Black 0.197" 5.00mm
触点数 9
极性 Female
额定电流 14 A
排数 3
易燃性等级 UL 94 V-0
针脚数 9
额定电流Max 14A/触头
工作温度Max 130 ℃
工作温度Min -55 ℃
额定电压Max 600 VAC
额定电压 600 V
安装方式 Panel, Solder
封装 -
引脚间距 5.00 mm
长度 23.8 mm
宽度 23.8 mm
高度 33.02 mm
封装 -
引脚间距 5.00 mm
外壳颜色 Red
颜色 Red
触点材质 Copper
材质 Thermoplastic
工作温度 -55℃ ~ 130℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bag
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8538906000
