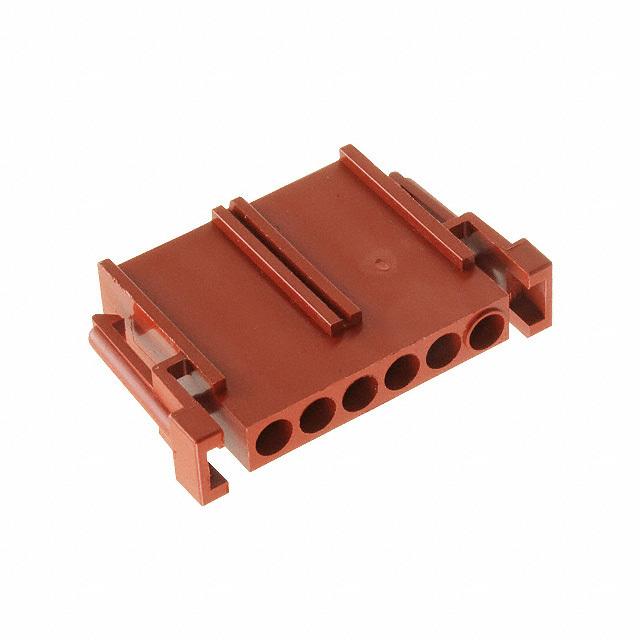

Conn Housing PL 6POS 5.08mm Crimp ST Cable Mount Carton
6 矩形 - 外壳 插头 红色 0.200"(5.08mm)
得捷:
CONN PLUG HSG 6POS 5.08MM
艾睿:
Thanks to TE Connectivity&s;s 208117-1 discrete wire housing, you can now easily connect discrete wires to your printed circuit board. This PL connector has 6 PL contacts. It has a maximum voltage rating of 600 VAC. This is a 1-row connector. It has a plug type gender. It has a straight body orientation. Its pitch is 5.08 mm. This device has a maximum current rating of 14 A/contact. This product is 43.18 mm long, 9.14 mm tall and 28.19 mm deep. 208117-1 is housed in red thermoplastic.
安富利:
Conn Housing PL 6 POS 5.08mm Crimp ST Cable Mount
Chip1Stop:
Conn Housing PL 6 POS 5.08mm Crimp ST Cable Mount Carton
Verical:
Conn Rectangular SKT 6 POS 5.08mm Crimp ST Panel Mount Carton
Newark:
# AMP - TE CONNECTIVITY 208117-1 PLUG,6 POSN,IN-LINE METRIC New
MASTER:
HOUSING, PLUG, 6 POSITION, METRIMATE
Powell:
Metrimate Connectors
Online Components:
PLUG,6 POSN,IN-LINE METRIC
Electro Sonic:
PLUG,6 POSN,IN-LINE METRIC
触点数 6
极性 Male
排数 1
易燃性等级 UL 94 V-0
针脚数 6
额定电流Max 14A/触头
工作温度Max 130 ℃
工作温度Min -55 ℃
额定电压Max 600 VAC
安装方式 Solder
引脚间距 5.08 mm
长度 43.18 mm
宽度 28.19 mm
高度 9.14 mm
引脚间距 5.08 mm
外壳颜色 Red
颜色 Red
触点材质 Phosphor Bronze
外壳材质 Nylon
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538906000
