9.8V ac, 14V dc 20kA PT Protective Plug, DIN Rail, Screw Mount Mounting
These modules are designed especially for protecting industrial bus systems such as Interbus, Profibus, Data-Highway and Modbus.
The- .
- *PT 3-HF Series** of products provide protection for two data signal conductors with a common reference potential.
Each data signal is protected with high-speed SAD technology in normal mode line-to-line and gas discharge tube technology in common mode line-to-ground.
得捷:
TVS DIODE 12VWM MODULE
艾睿:

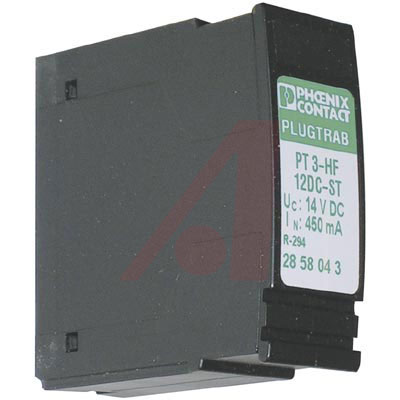

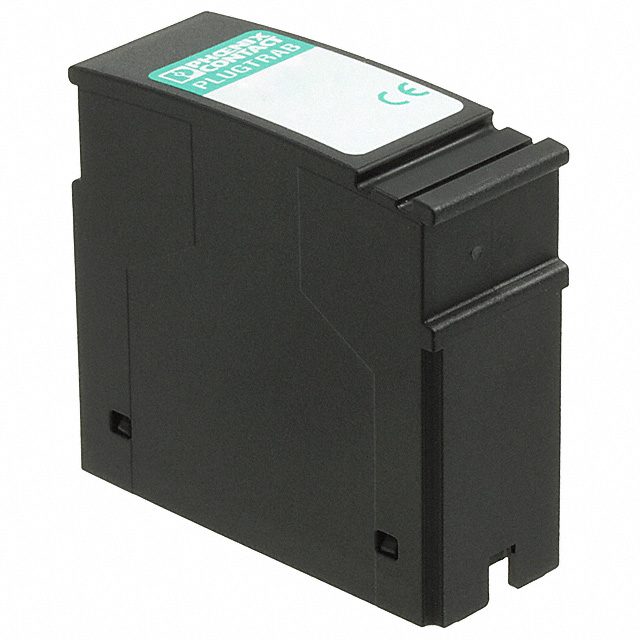

Are you worried about surges for your electronics and appliances? This 2858043 surge suppressor from Phoenix Contact, will put you to ease. Its maximum surge current is 10kA. This devices&s; clamping voltage is 14VDC|9.8VAC. 2858043 is housed in polyamide. This surge suppressor has an operating temperature range of -40 °C to 85 °C. This product is 45 mm long, 52 mm tall and 17.7 mm deep.
Allied Electronics:
Plug, Surge Protection; 12 VDC Nom.; UL Listed; 8; -40 to degC
Verical:
Surge Suppressors 450mA 12VDC DIN Rail Plug-In
MASTER:
Surge protection plug for the base element - normal mode voltage coarse and fine protection for two floating signal wires and ground in IT - common mode voltage coarse protection to ground/earth. Design: 12 V DC
Online Components:
Surge Suppressors 450mA 12VDC DIN Rail Plug-In
Electro Sonic:
Surge protection plug for the base element - normal mode voltage coarse and fine protection for two floating signal wires ...
